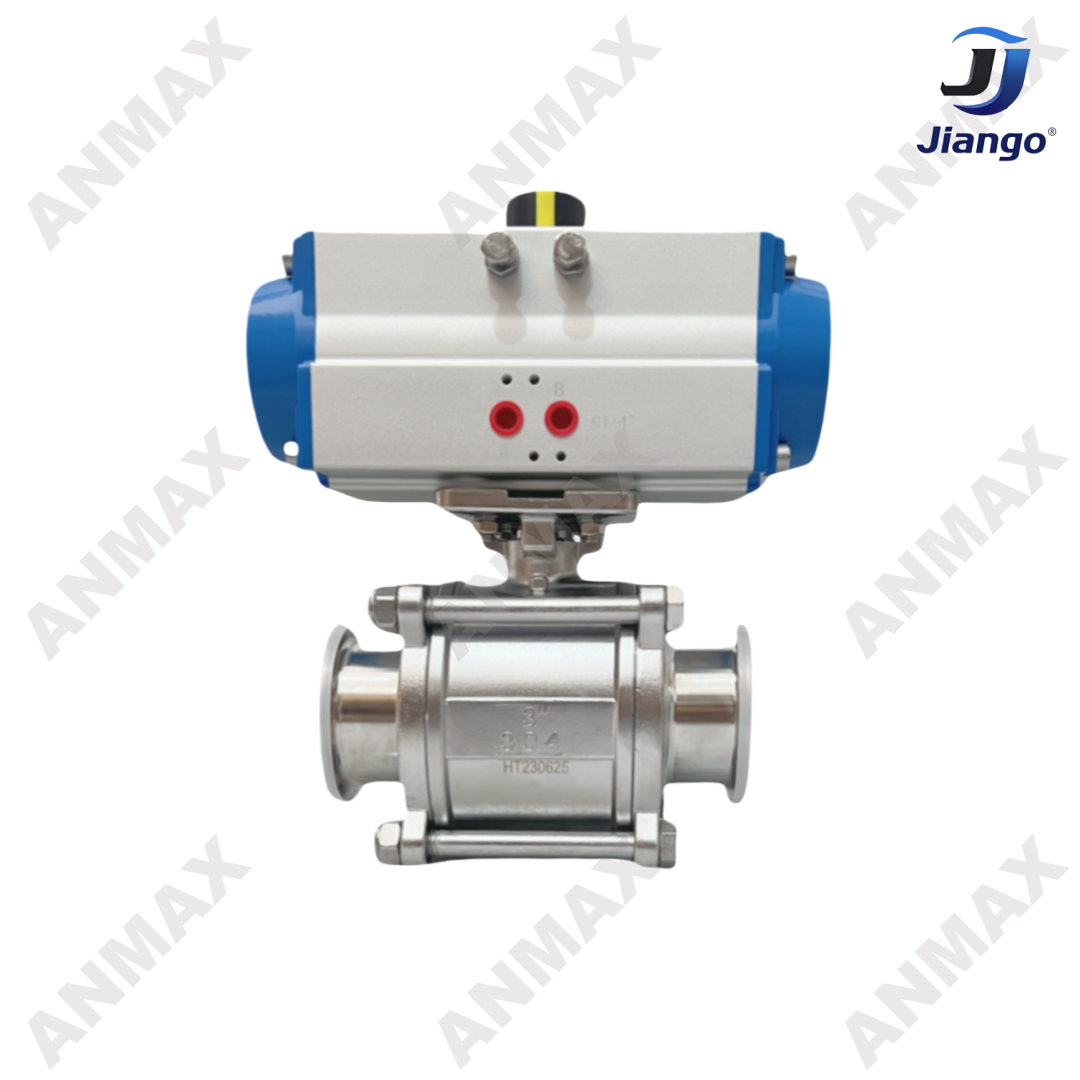

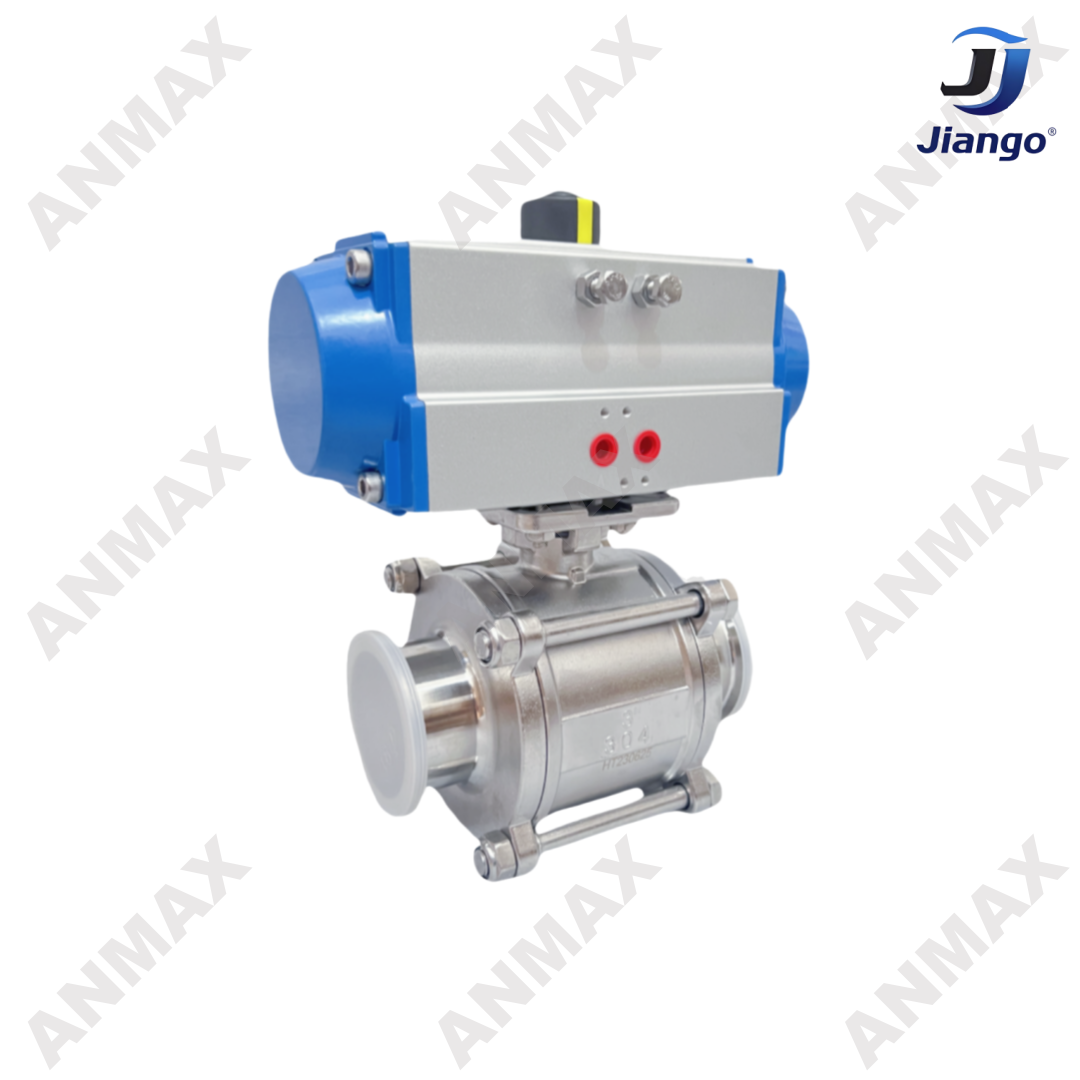

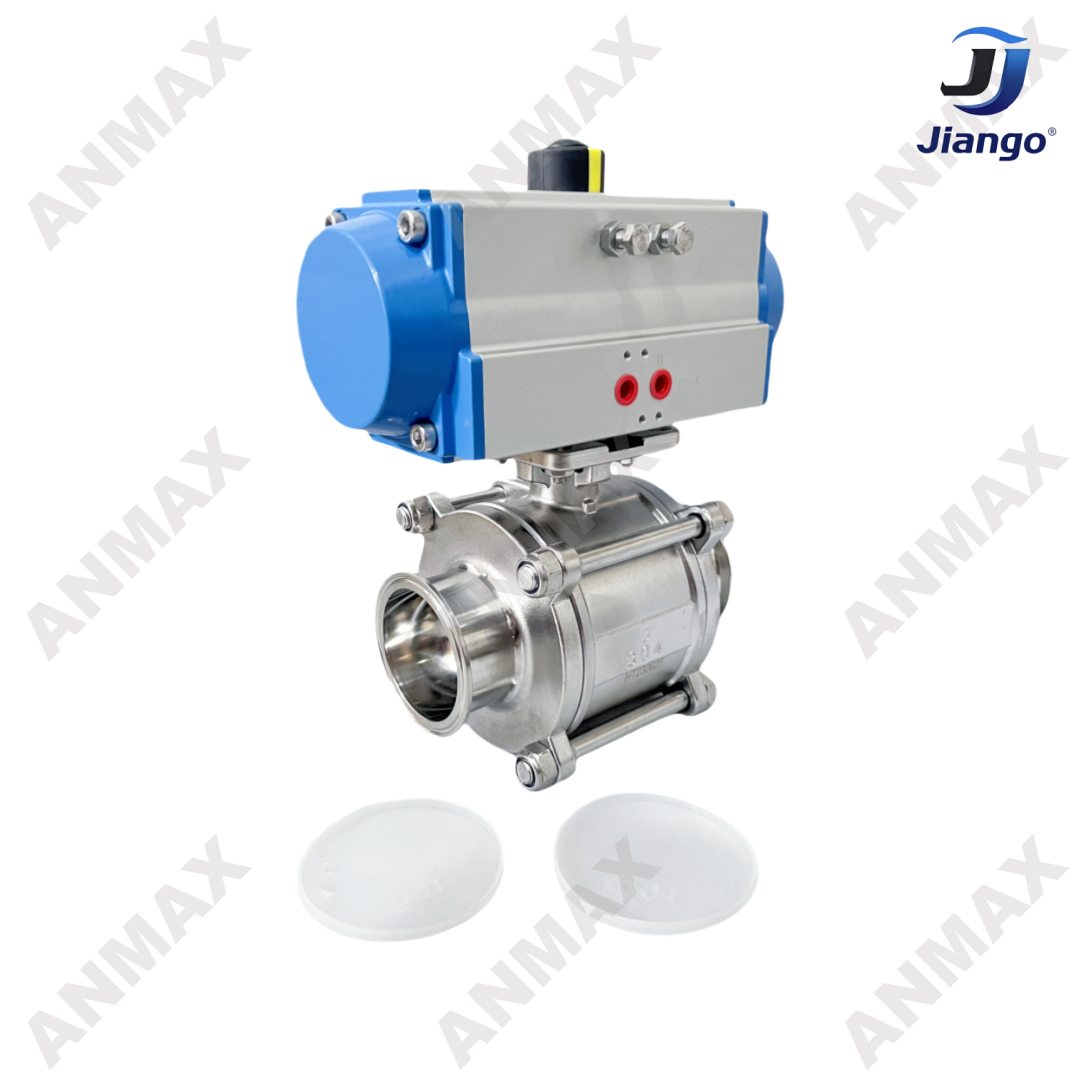

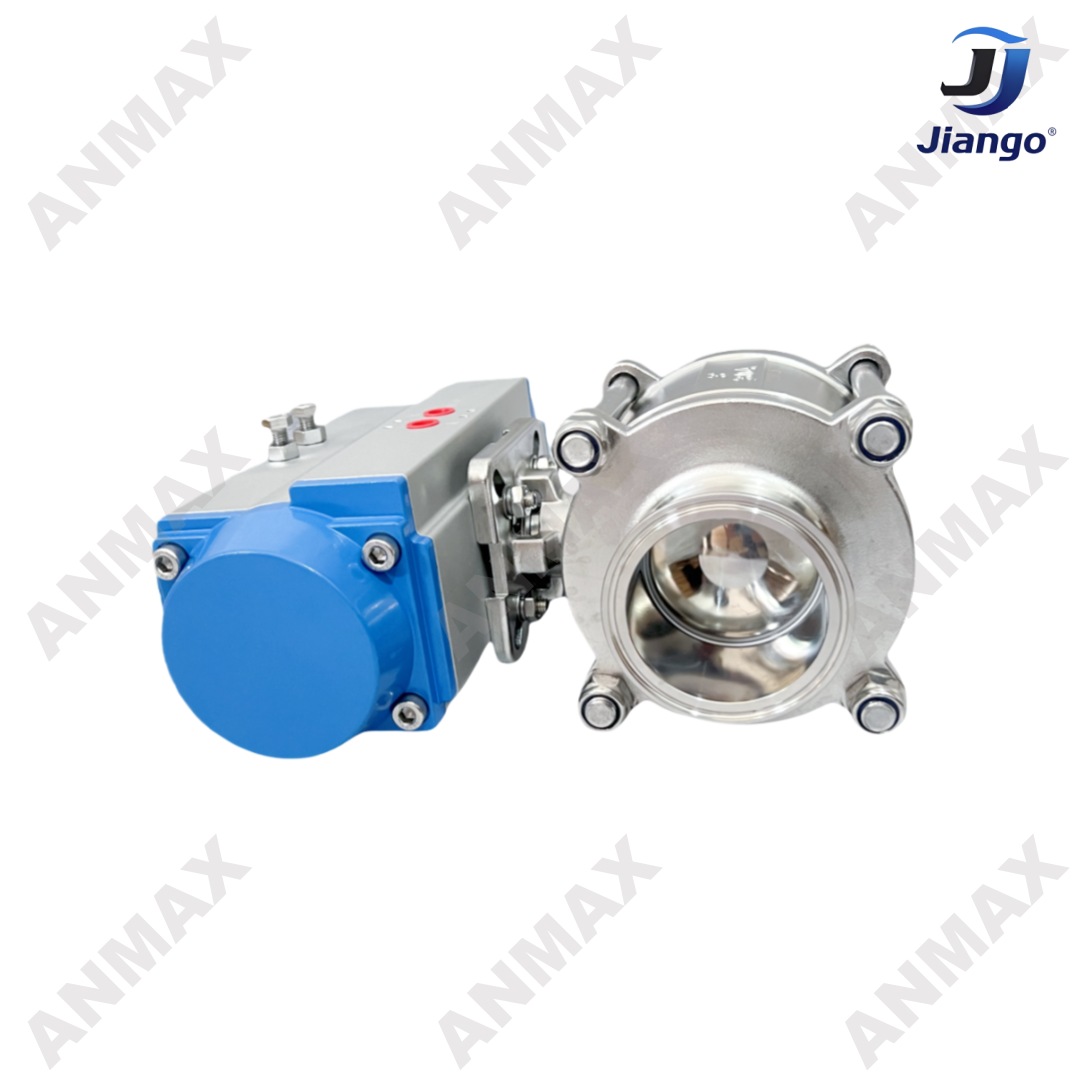

Pneumatic Sanitary 3-Piece Clamp Ball Valve
Sanitary Pneumatic 3-Piece Clamp Ball Valve
Material : Stainless Steel 304 or 316L
Size : 1/2"-4",DN15-DN100
Connection : Clamp
100% tested and inspected
Sanitary ball valves are manufactured from high-quality stainless steel to meet the special requirements of various media in the food and biopharmaceutical industries.
Anmax offers a variety of sanitary ball valves, available with manual operation, horizontal actuators, vertical actuators, and electric actuators.
Options include straight, three-way, and four-way configurations, capable of operating at high temperatures.
Connection ends feature tri-clover/clamp, welded, threaded, or flanged options. Suitable for fluid applications in water treatment, food and beverage processing, pharmaceuticals, and more.
|
Name |
Sanitary Pneumatic 3-Piece Clamp Ball Valve |
|
Material |
Stainless steel 304, 316L |
|
Size |
1/4"-4",DN6-DN100 |
|
Seal |
PTFE or according to customers |
|
Standards |
3A/DIN/SMS/RJT/ISO/IDF |
|
Surface |
Ra16-32µin (0.4-0.8µm) |
|
Max Pressure |
10Bar |
|
Working Temperature |
-20°C ~ +150°C |
|
Way of Connection |
Tri-Clover/Clamp End,Thread End,Butt Weld End |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
Hygienic Pneumatic Ball Valve Feature
Certificates: have 3A certificate,ISO,SGS, .....and so on
Full Cavity without dead angle, no retention
A wide selection of different end connections.
Three-piece is easy to install and maintain,and is easy to disassemble and replace.
Suitable for low and medium viscosity fluids.
The manual handle, pneumatic actuator and electric actuator are interchangeable
100% hydraulic tested / 100% inspected.
