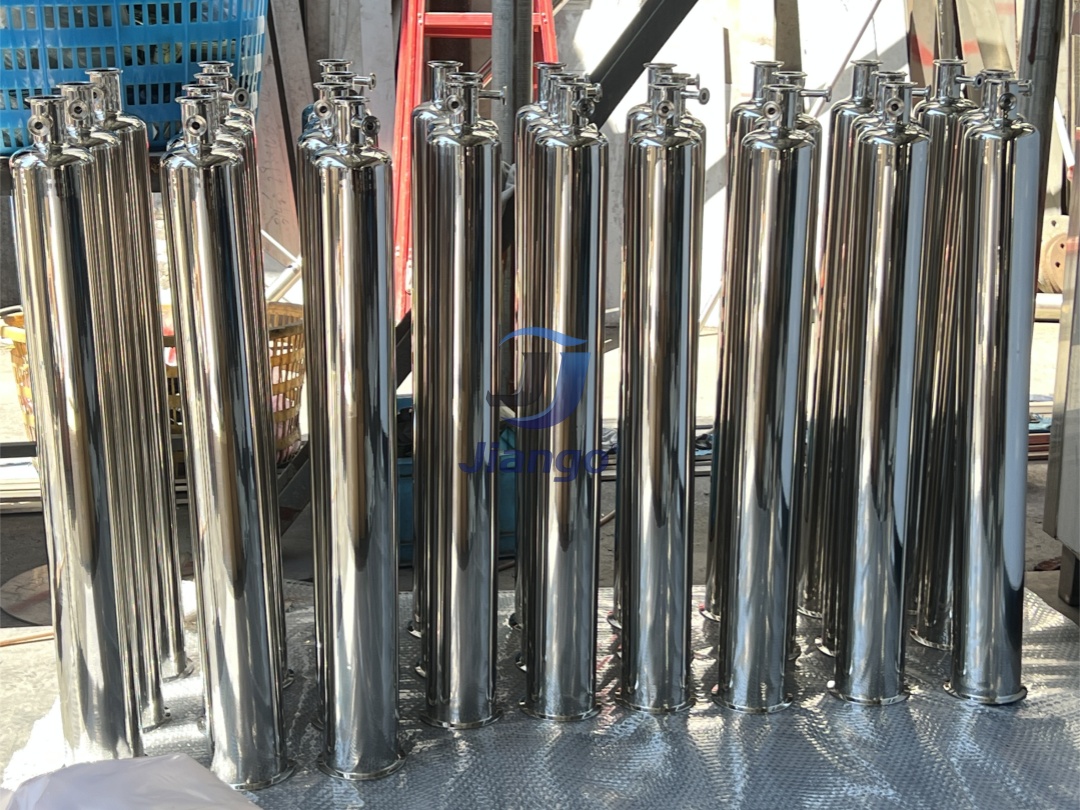

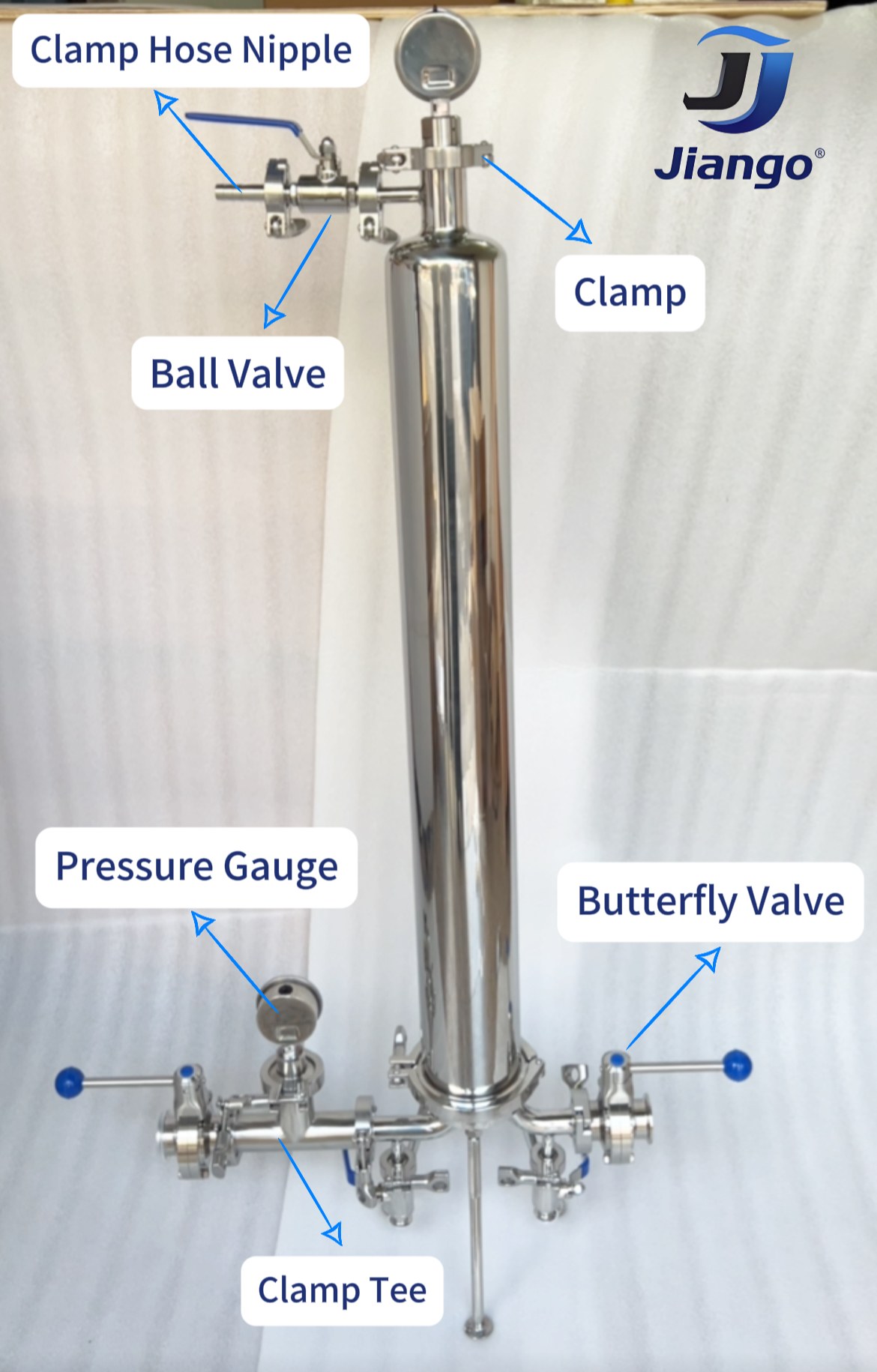

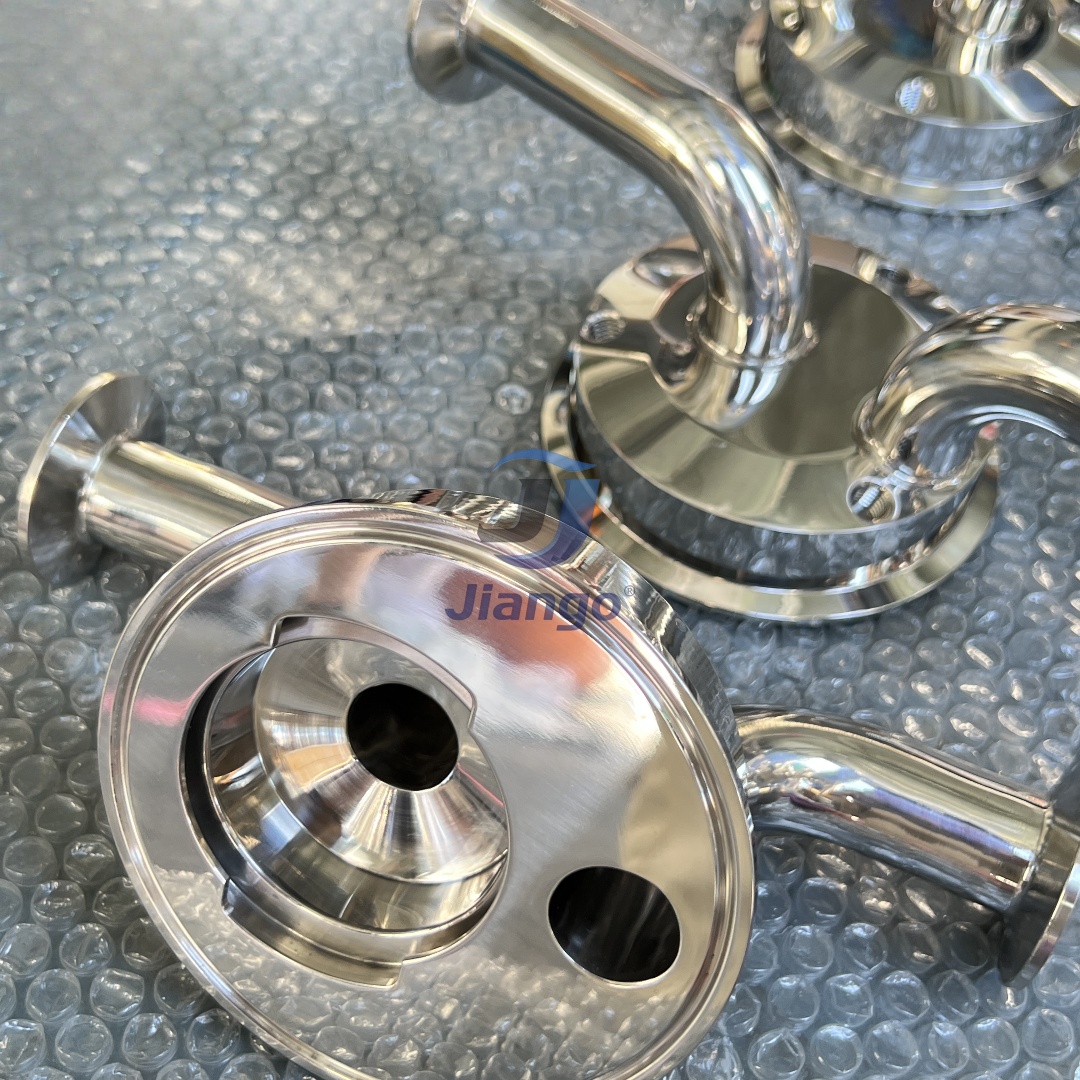

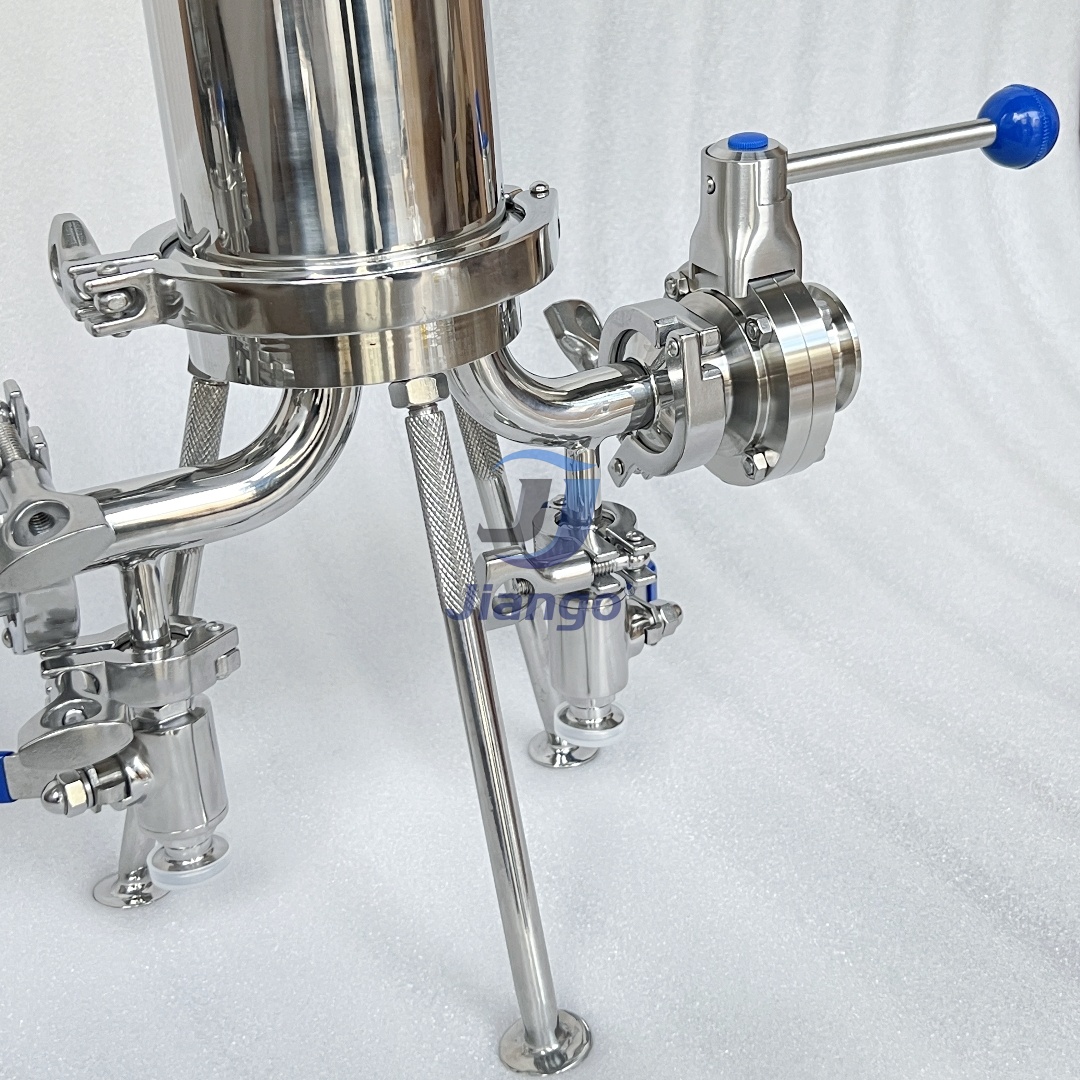

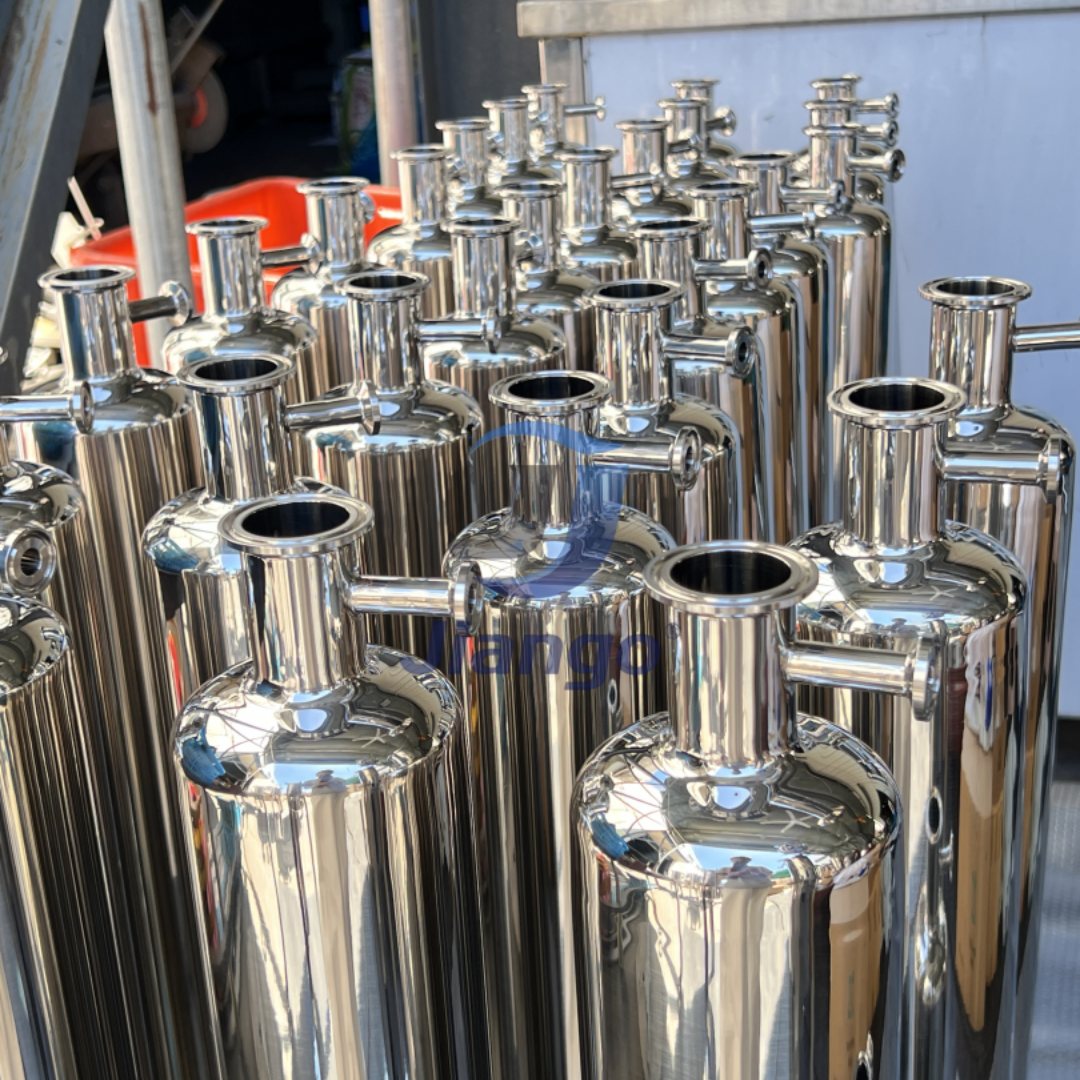

Sanitary Stainless Steel Single Cartridge Filter Housing
Material : Stainless Steel 304 or 316L
Cartridges : 10"- 40"
Max Operate Pressure: 10Bar
100% tested and inspected
No dead corner filter
Single Fluid Sanitary Filter have excellent surface treatment and the maximal corrosion-resistant in order to prevent the bacterial contamination.
The unique structure of the sanitary filter housing ensures inside and outside surface have no dead corner and conforms to the requirements of GMP.
The filter housing can be completely disassembled and washed, easy to operate.
|
Name |
Sanitary Stainless Steel Single Cartridge Filter Housing |
|
Material |
Stainless steel 304, 316L |
|
Cartridges |
10"- 40" |
|
Cartridges Connection |
226 Type and 222 Type |
|
O-ring |
EPDM, PTFE, Viton, Silicone |
|
Surface |
Mirror Polish,Matt Polish,Electrolytical Polish |
|
Max. operating pressure |
10Bar |
|
Max. operating temperature |
150°C |
|
Way of Connection |
Tri-Clover/Clamp End,Thread End,Butt Weld End,Flanged |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
Feature
Ultra high level of polishing, use 0.3µm, the outer wall is 0.4µm, absolute health level and polishing.
Using strong fast loading, the highest pressure of 0.6MPa, 1.0MPa.
Low exhaust valve and drain valve: threaded joint sets and pagoda from,
when deflated and drainage, with the connect hose won't turn.
Low filter supporting feet by strengthening thread, not easy sliding teeth, more durable,
Application
Low the pharmaceutical industry: all kinds of antibiotics such as liquid prefiltering.
Low food and beverage, wine, mineral water, drinking water filtration.
Low oil industry, oil field water injection filter.
Low electronic industry: high pure water prefiltering
Low chemical industry: all kinds of organic solvents, acid, alkali liquor filtration.
