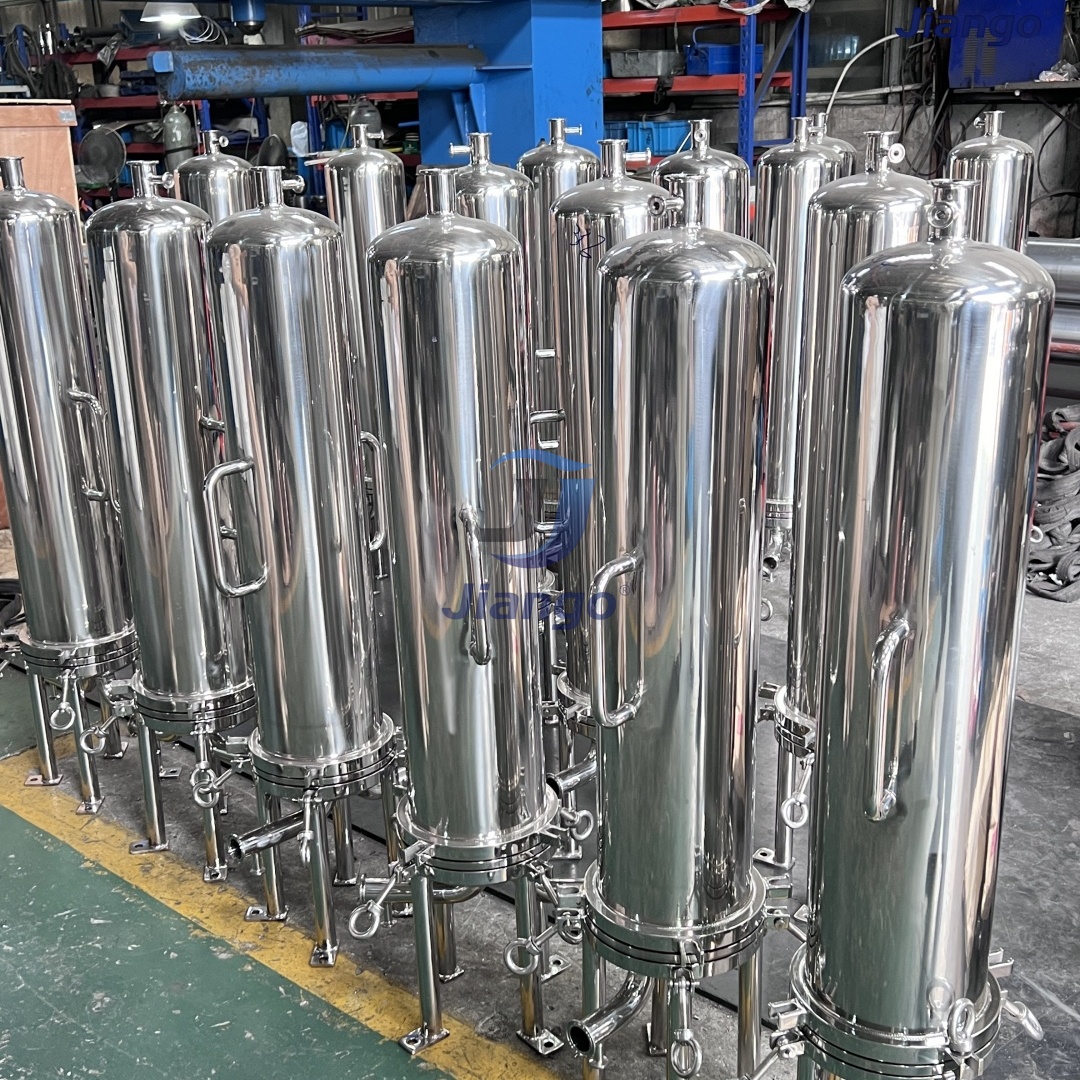

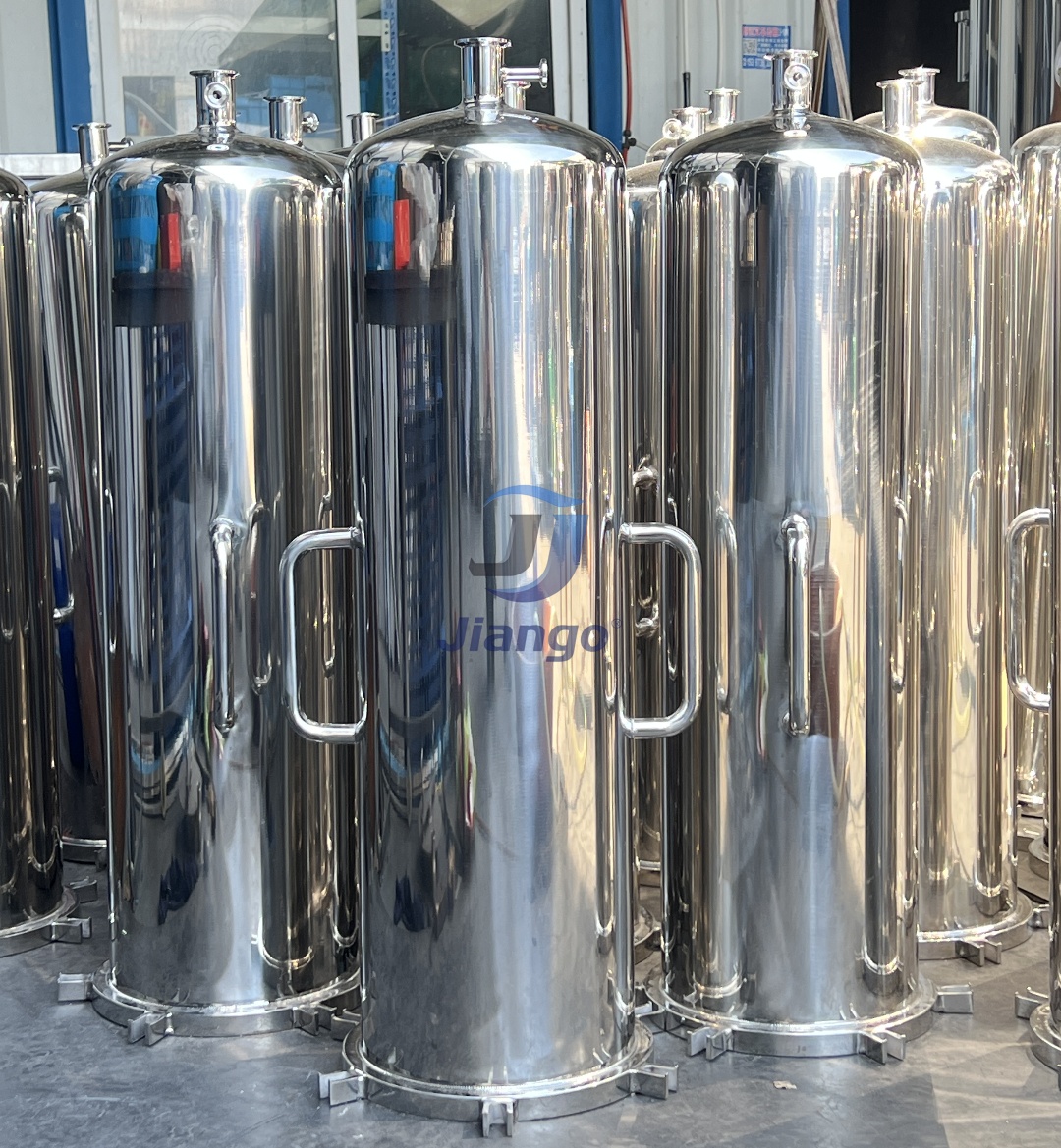

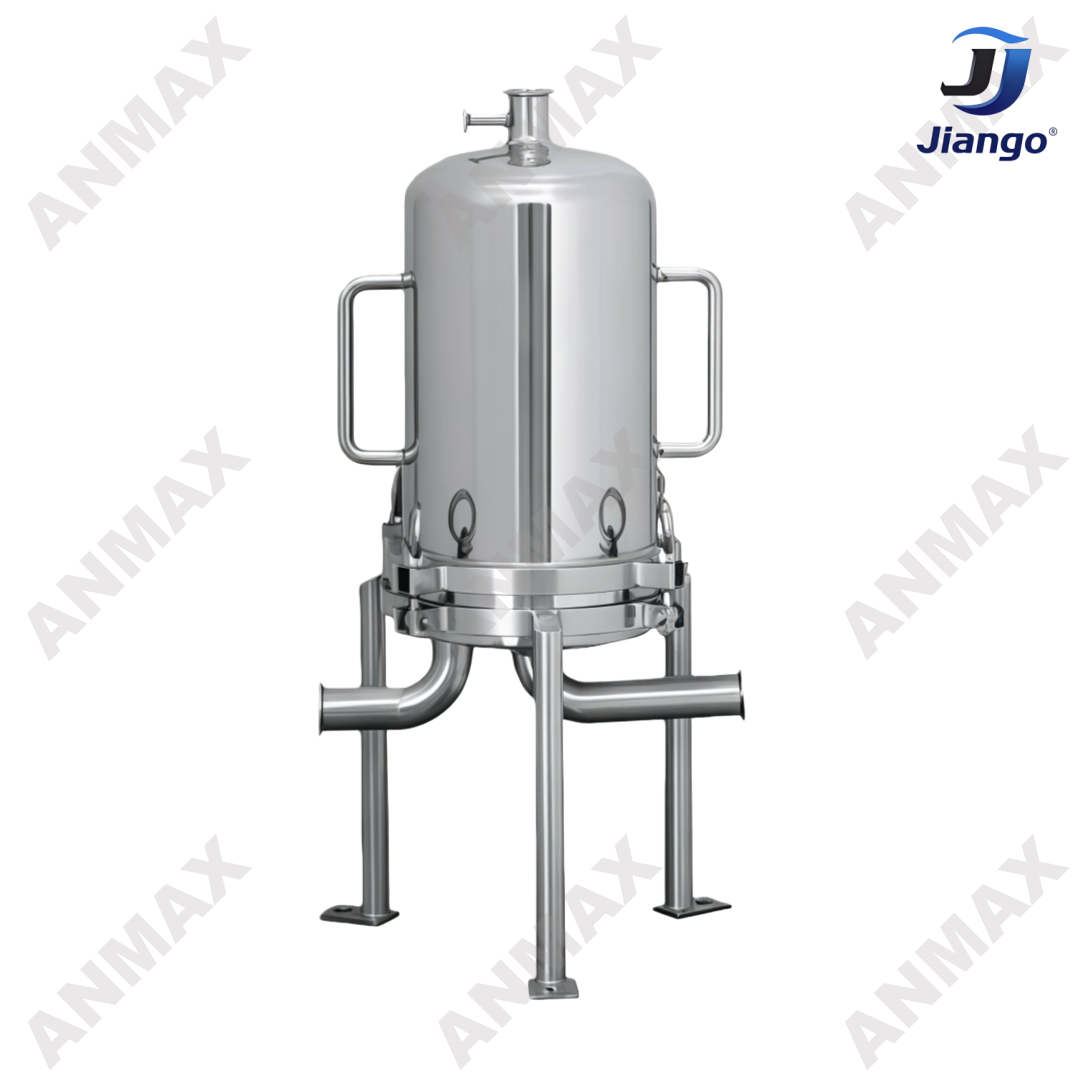

Sanitary Multi Cartridge Filter Housing
Material : Stainless Steel 304 or 316L
Cartridges : 10"-40"
Max Operate Pressure: 10Bar
100% tested and inspected
Medium & small flow rate sanitary filter
Multi Fluid Sanitary Filter can meet requirement of medium & small flow rate.
The structure design and manufacture in accordance with the sanitary grade.
lt's no dead corner, meet " GMP" standard , easy to clean, drain thoroughly, no residual liquid.
For the application of some very harsh cleaning, the filter faceplate made of detachable, full angle cleaning
|
Name |
Sanitary Stainless Steel Multi Cartridge Filter Housing |
|
Material |
Stainless steel 304, 316L |
|
Cartridges |
10"- 40" |
|
Cartridges Connection |
226 Type and 222 Type |
|
O-ring |
EPDM, PTFE, Viton, Silicone |
|
Surface |
Mirror Polish,Matt Polish,Electrolytical Polish |
|
Max. operating pressure |
10Bar |
|
Max. operating temperature |
150°C |
|
Way of Connection |
Tri-Clover/Clamp End,Thread End,Butt Weld End,Flanged |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
Feature
The ultra high level of polishing, the inner surface polished to 0.3µm Ra. the outer surface to reach 0.4µm, the absolute hygienic level polishing.
The vent valve can choose quick-open,can completely disassembled and no dead corner of cleaning.
Application
Pharmaceutical industry: all kinds of antibiotics and other liquid filtration.
Food and beverage industry: wine ,mineral water, drinking water filtration.
Oil industry: oil field water injection filtration.
Electronics industry: high purity water filtration.
