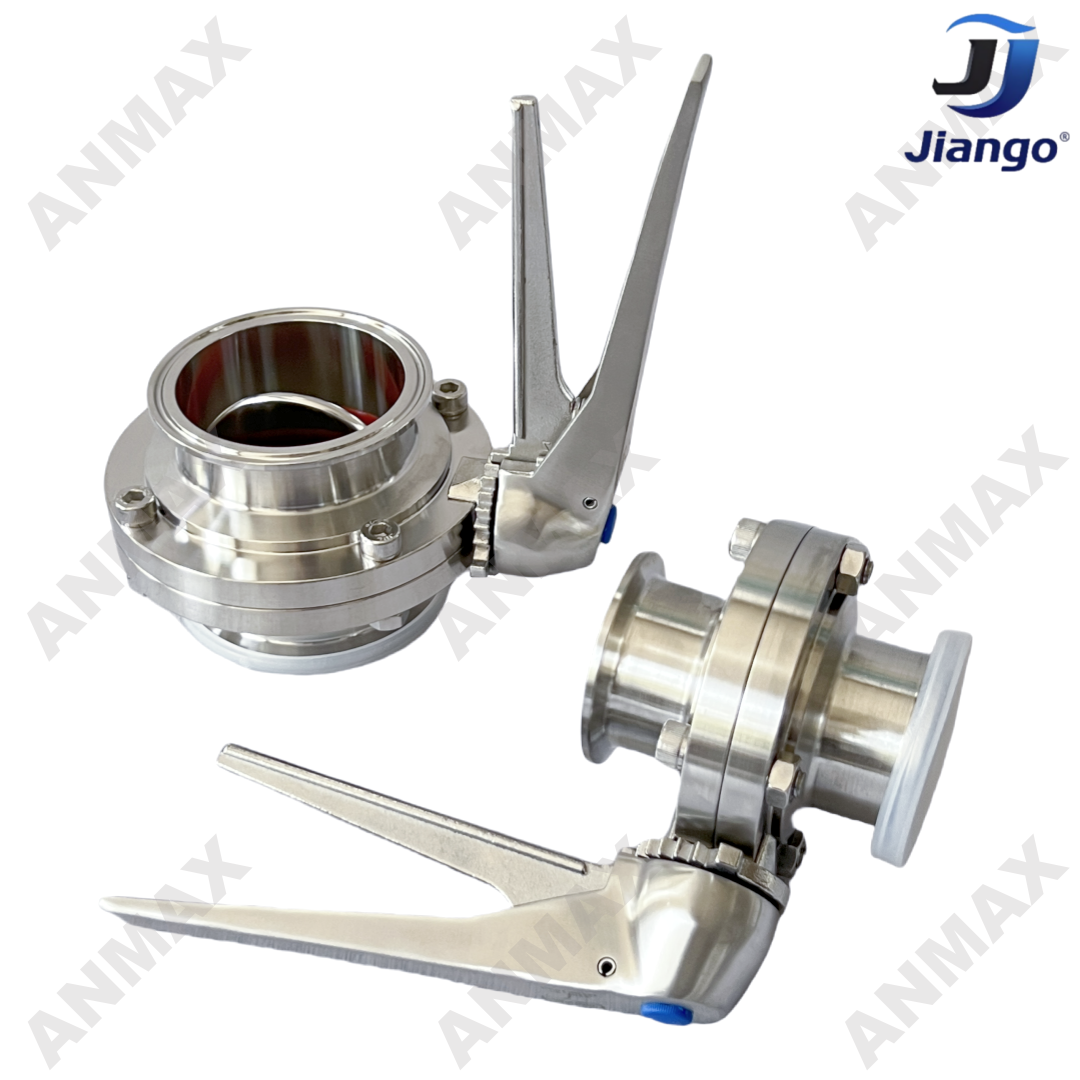

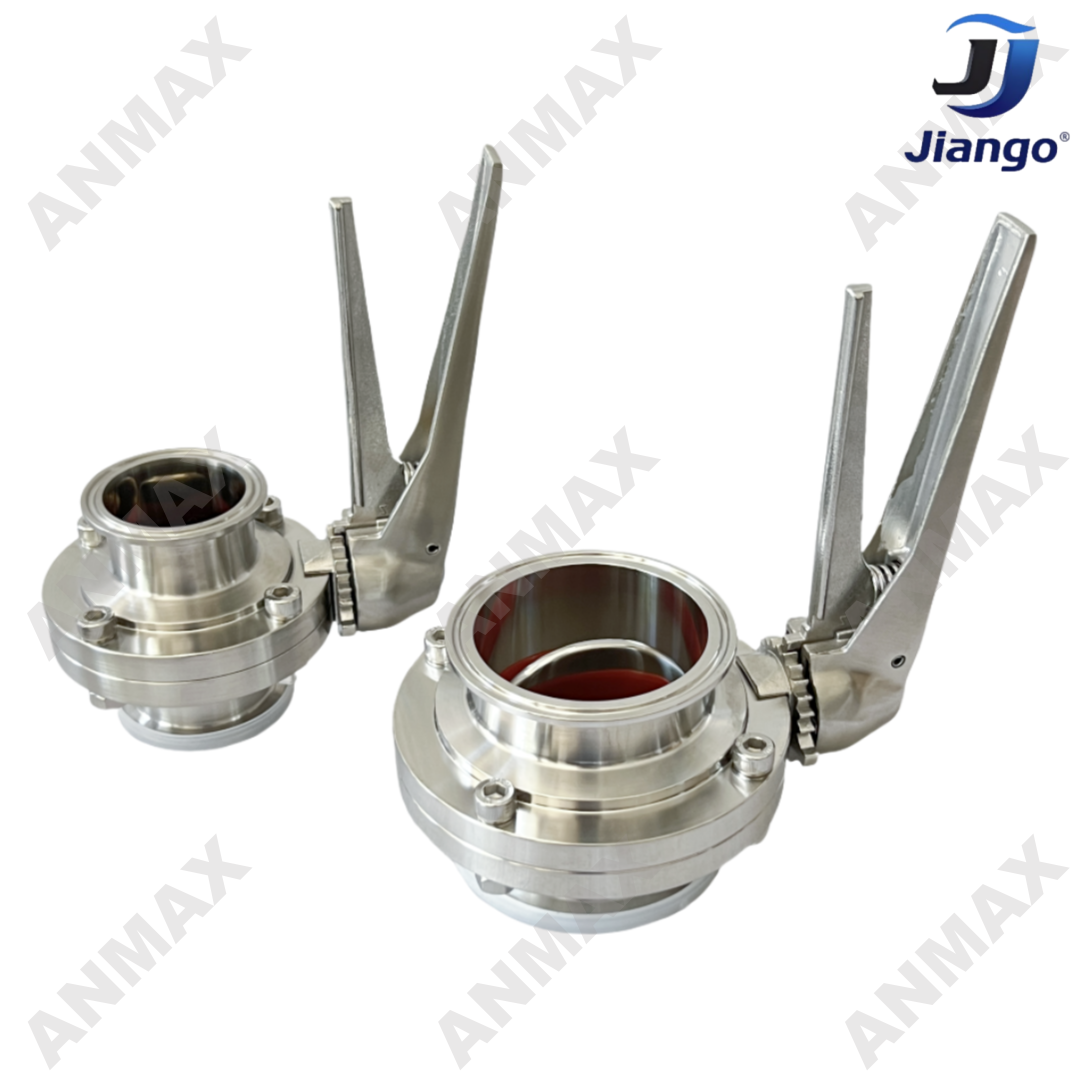

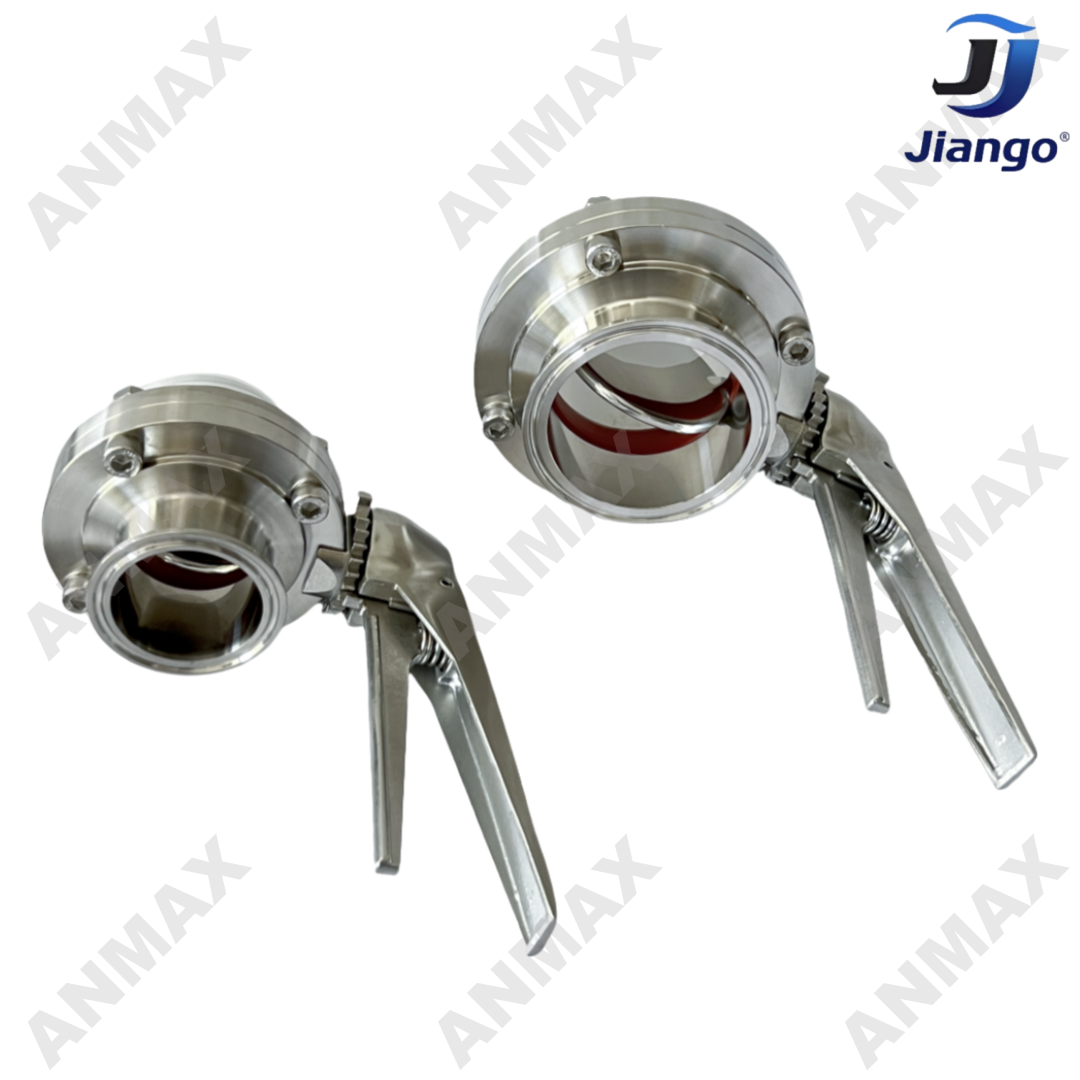

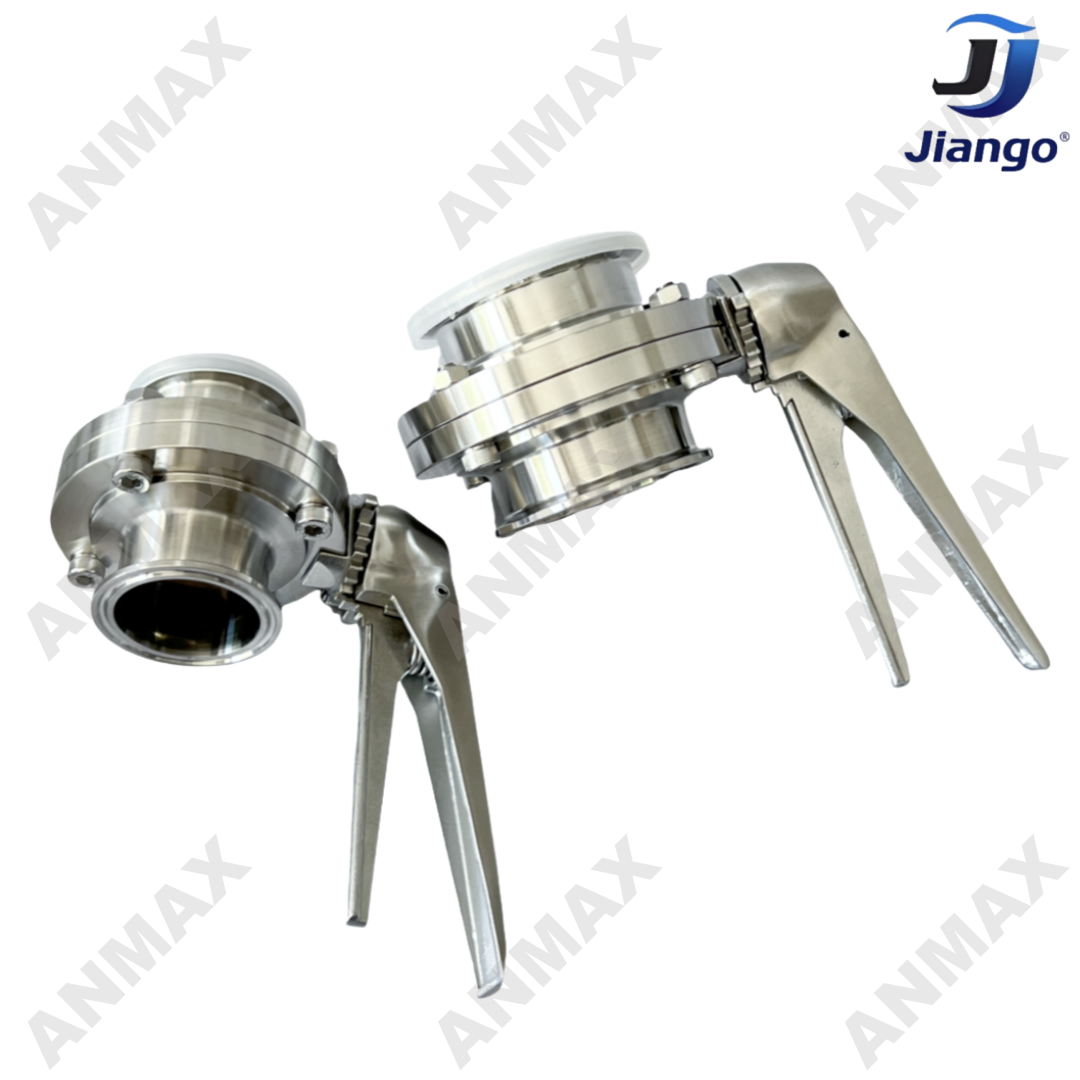

Stainless Steel Clamped Butterfly Valve
Sanitary Clamp Butterfly Valve
Material : Stainless Steel 304 or 316L
Size : 1/2"-12",DN10-DN300
Connection : Clamp
100% tested and inspected
Sanitary butterfly valves are engineered for enhanced efficiency, making them an ideal choice across various industries to ensure precise flow control and reliability. The tri clamp connection guarantees easy installation and hygienic performance.
Butterfly valve is used for the connection or control of the transmission pipeline of fluid and semi fluid materials in the food and beverage industry.
It can effectively ensure the sanitary quality of materials in the transmission process.
At the same time, it is also easy to clean and disinfect, so as to keep the pipeline clean and hygienic
| Name | Stainless steel tri clamp butterfly with trigger handle |
|
Material |
Stainless steel 304, 316L |
|
Size |
1/2"-12",DN10-DN300 |
|
Standards |
3A/DIN/SMS/RJT/ISO/IDF |
|
Seal |
EPDM, NBR, PTFE or according to customers |
|
Surface |
Inside Ra ≤ 0,8 µm |
|
Max Pressure |
10Bar |
|
Working Temperature |
-10℃ ~ +120℃ |
|
Way of Connection |
Threaded, Welded, Clamped,Flanged |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
