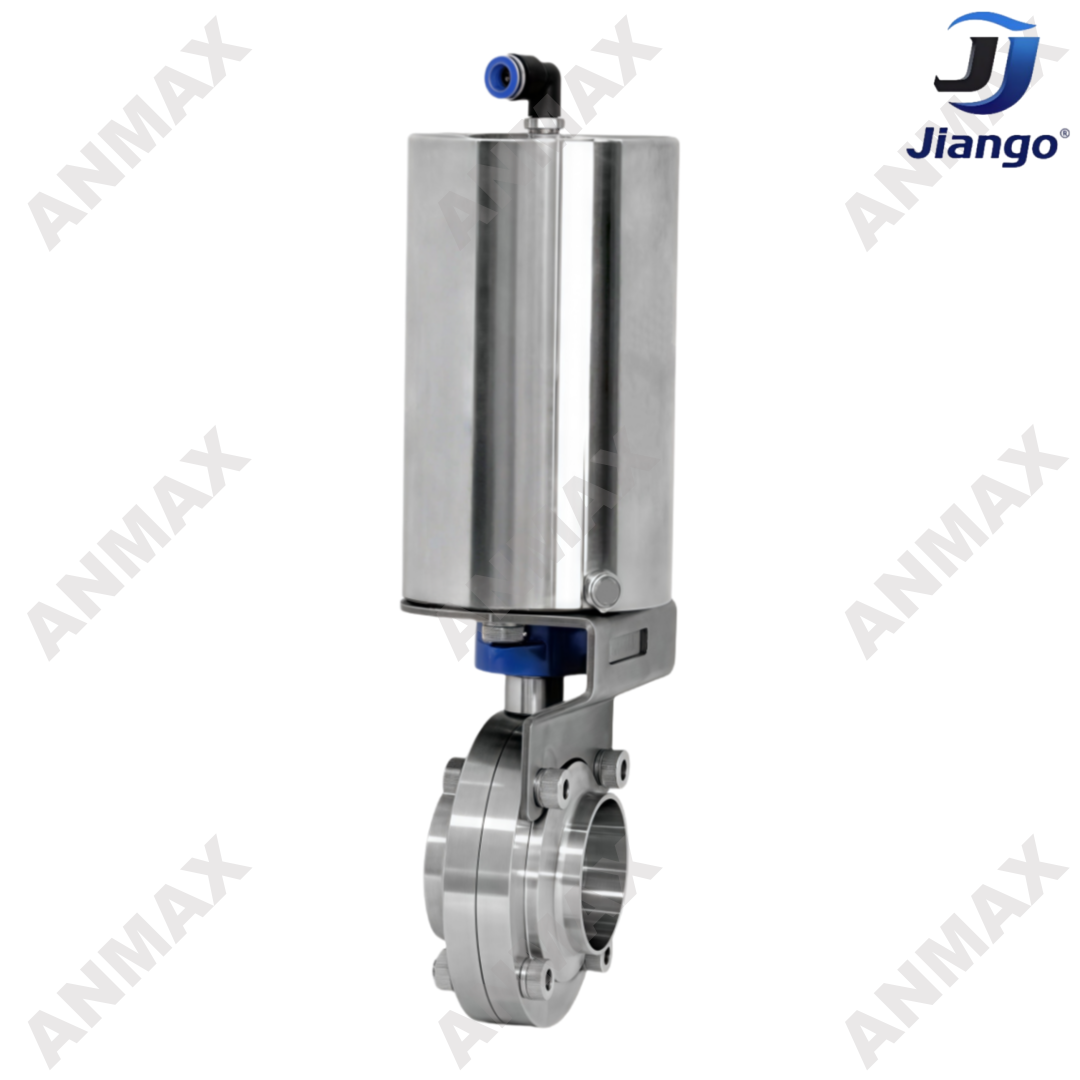

Sanitary Butterfly Valve With Pneumatic Actuator
Material : Stainless Steel 304 or 316L
Size : 1/2"-12",DN15-DN300
Connection : Weld
100% tested and inspected

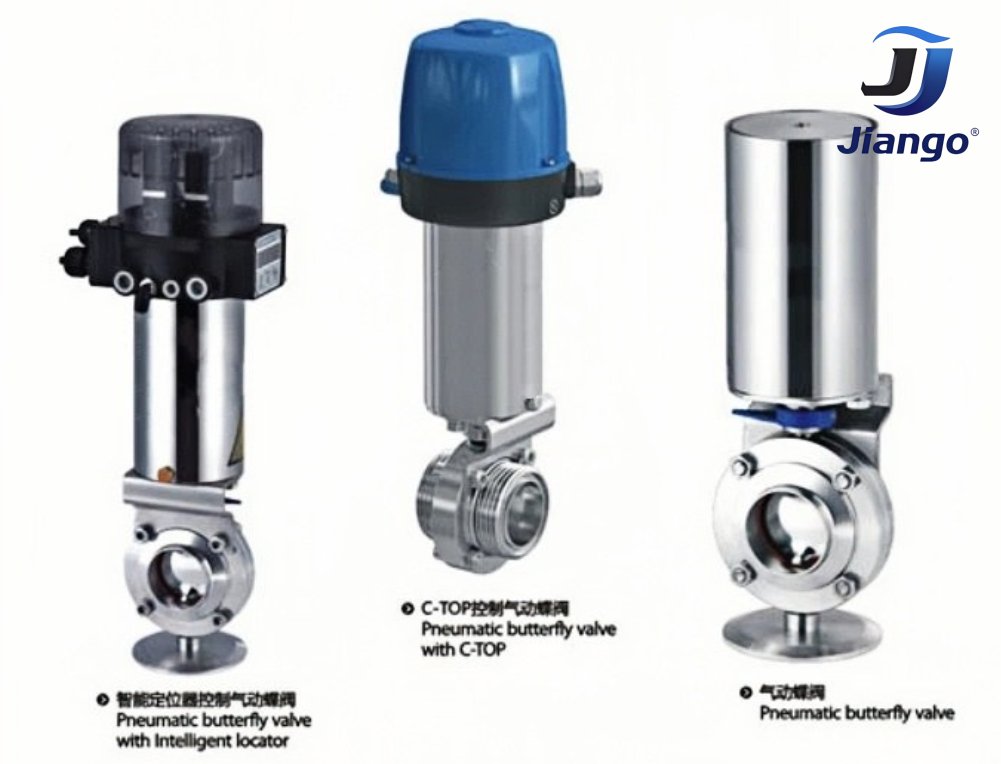

There are three standard types of actuators, namely, normally closed (NC) type, normally open (NO) type and air/air (A/A) type.
The actuator converts the axial movement of a piston into the 90 ° rotation movement of the valve shaft.
When the circular disc in the valve body contacts the sealing ring of the butterfly valve, the actuator's torque increases. The valve can be mechanically locked in open, closed, middle, or other positions using different manual operation handles, allowing for flow adjustment.
|
Name |
Hygienic Butterfly Valve with Butt-weld Ends |
|
Material |
Stainless steel 304, 316L |
|
Size |
1/2"-12",DN10-DN300 |
|
Seal |
EPDM, NBR, PTFE or according to customers |
|
Surface |
Inside Ra ≤ 0,8 µm |
|
Max Pressure |
10Bar |
|
Working Temperature |
-10℃ ~ +120℃ |
|
Way of Connection |
Threaded, Welded, Clamped,Flanged |
|
Pneumatic Actuator Types |
SS304 vertical actuator, NC (normally close) / NO (normally open) / AA (air to air) |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |

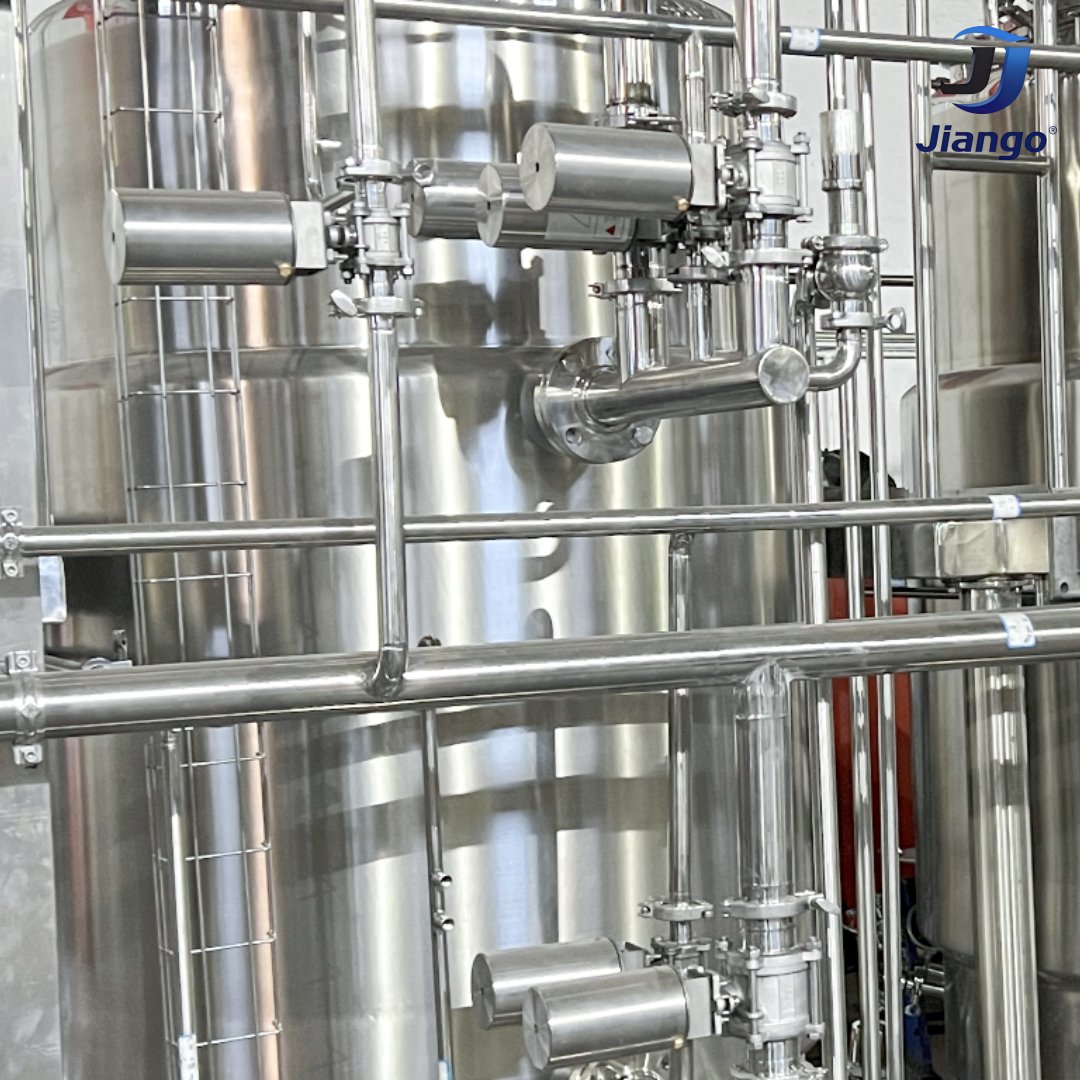

Applications of Sanitary Pneumatic Butterfly Valves
Food and Beverage Industry:
Pneumatic sanitary butterfly valves play a vital role in food and beverage production lines. They are used to control the flow of liquids, gases, and slurries, ensuring product purity and safety.
Pharmaceutical Industry:
In pharmaceutical processes, pneumatic sanitary butterfly valves are employed for conveying and controlling various drugs, solvents, and intermediates.
Biotechnology Industry:
Dairy and Dairy Processing:
Pneumatic sanitary butterfly valves play a critical role in the production and processing of dairy products. They are used to regulate the flow of milk, cream, yogurt, and other dairy items, guaranteeing product quality and safety.
