Sanitary Stainless Steel Centrifugal Pump
Material : Stainless Steel 304 or 316L
Inlet & Outlet Sizes : 1 1/2"-3" (DN40-DN80)
Connection : Clamp
100% tested and inspected
Sanitary stainless steel centrifugal pumps are frequently employed for transporting low-viscosity liquids, representing the most cost-effective option.
High-purity centrifugal pumps, including motors, are constructed entirely of stainless steel and comply with ASME BPE, EHEDG, and 3-A Sanitary Grade standards. They are widely utilized in food processing, dairy, beverage, pharmaceutical, and fine chemical industries.
Operating Principles

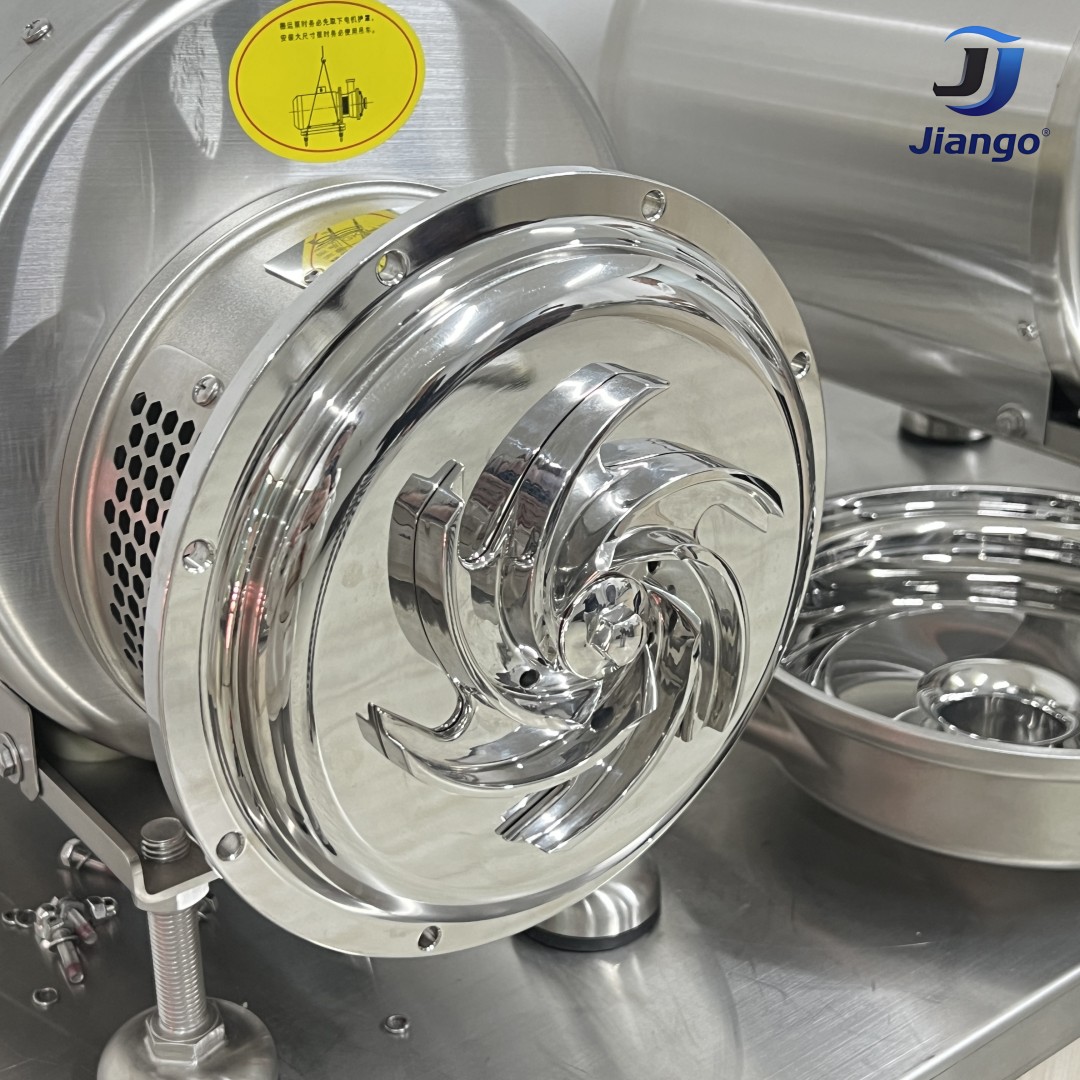

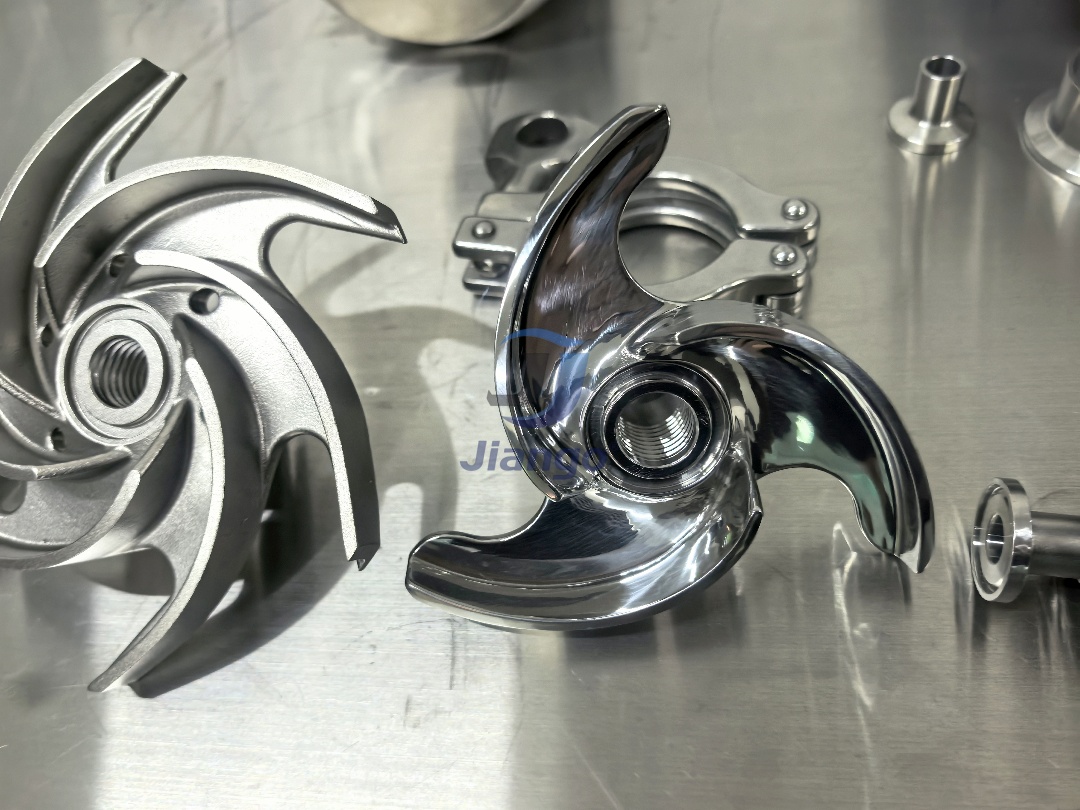

The impeller of a centrifugal pump is housed inside the casing and rotates in conjunction with the pump shaft.
This arrangement causes the impeller blades to convey energy to the fluid in the form of kinetic and pressure energy.
Our centrifugal pump cannot be reversed simply by reversing the direction of rotation. When viewed from the rear side of the motor, the direction of rotation is clockwise.
|
Name |
Sanitary Stainless Steel Centrifugal Pump |
|
Material |
Stainless Steel 304 or 316L |
|
Inlet & Outlet Sizes |
1 1/2"-3" (DN40-DN80) |
|
Mechanical seal |
Single seal (standard), Double mechanical seal (option), SIC/C, SIC/SIC |
|
Flow rate |
1 to 140 m³/h |
|
Inlet/Outlet Connection |
Tri-Clamp End, Butt Weld End, Thread, Flange |
|
Maximum lift head |
70M(7bar) |
|
Power Supply |
1.5KW-30KW |
|
Working Temperature |
-20°C ~ +140°C |
|
Surface |
Ra16-32µin (0.4-0.8µm) |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
Hygienic Centrifugal Pump Feature
High-lift, low noise, high flow, no dead ends, high-performance characteristics
Pure stainless steel design ensures continuous operation and more uptime
Surface heat jacket; complete heat jacket.
Flushed single or double mechanical seal

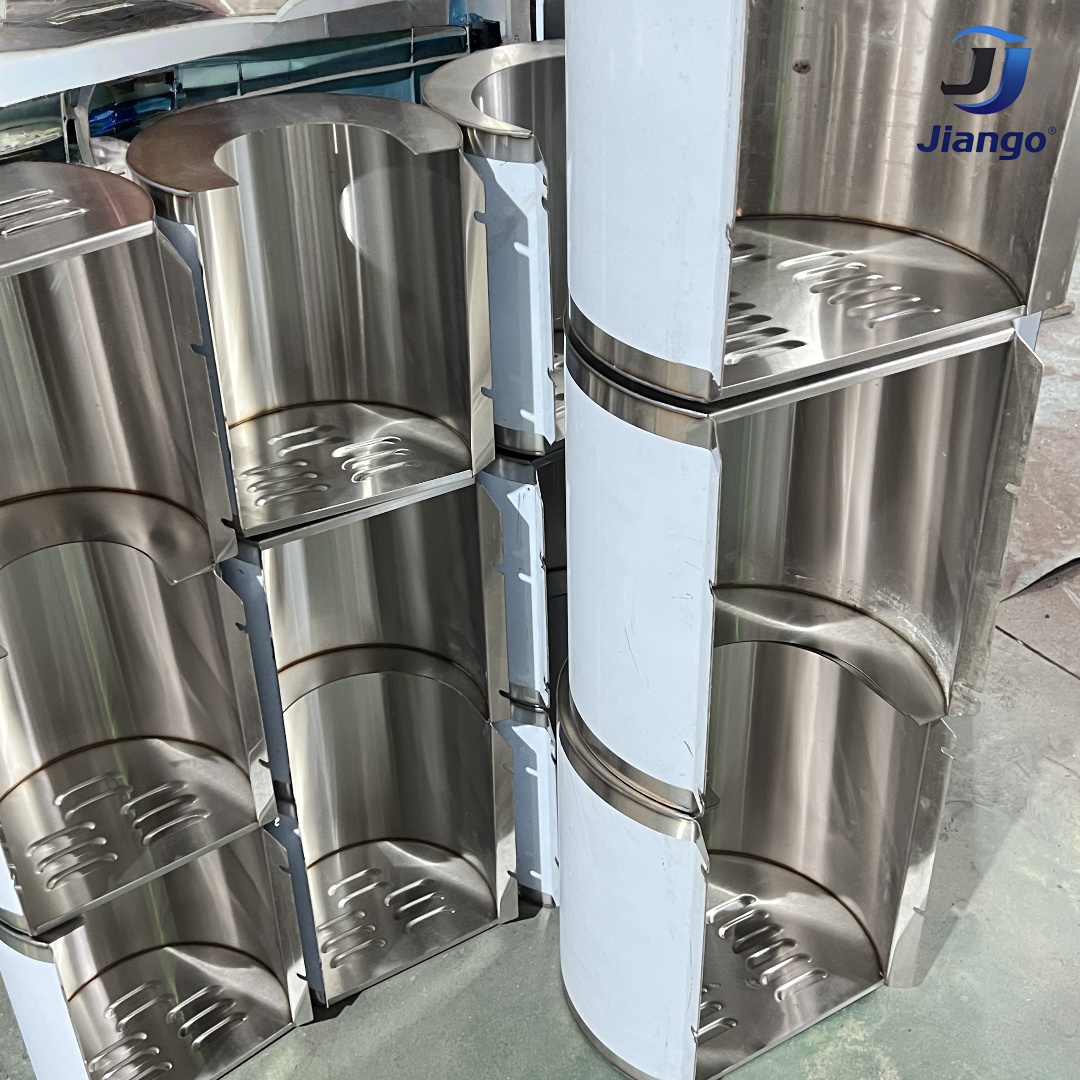

With stainless steel base plate & adjustable feet
Reduces lifecycle costs through energy-efficient operation, easy cleanability, simplified maintenance, and extended service life
