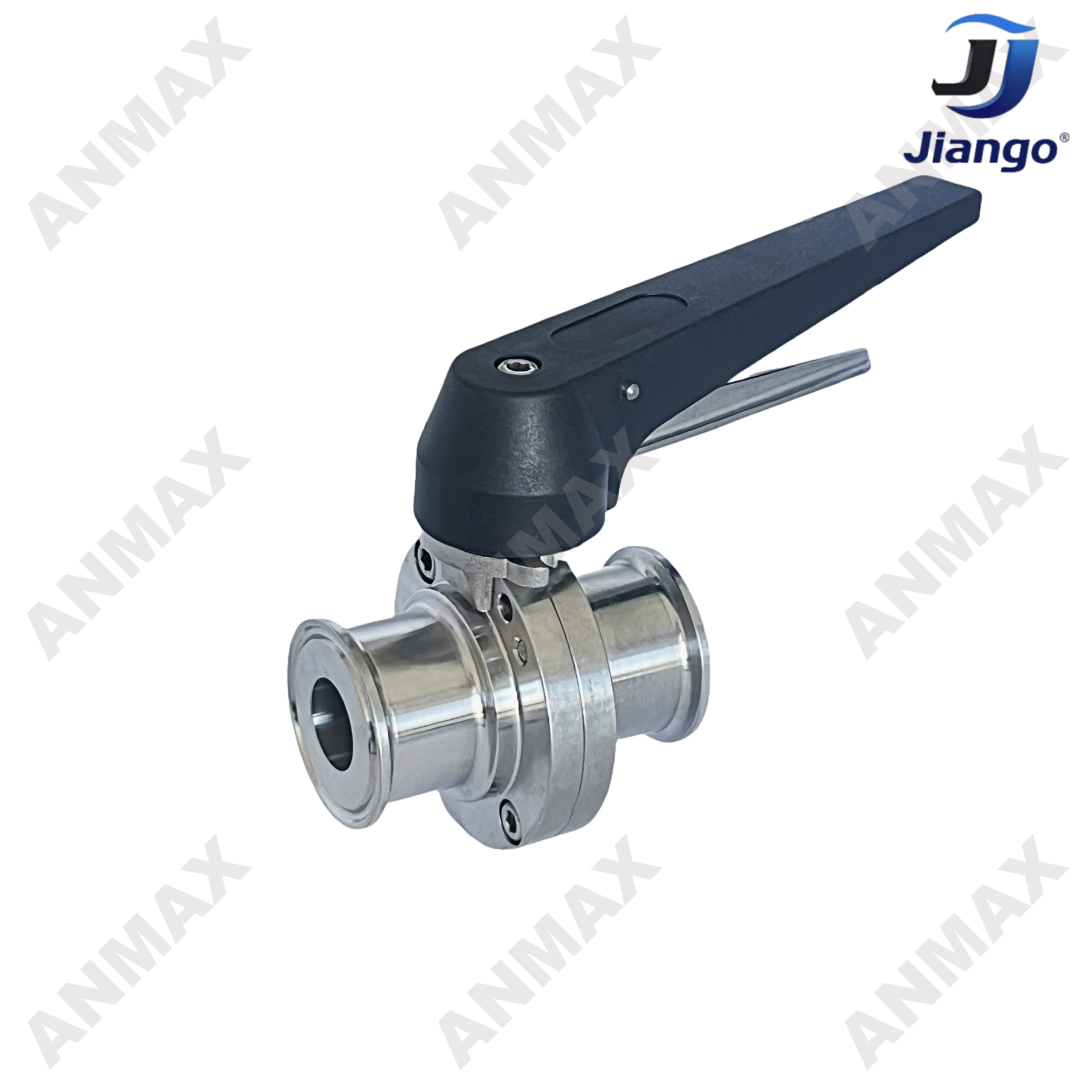

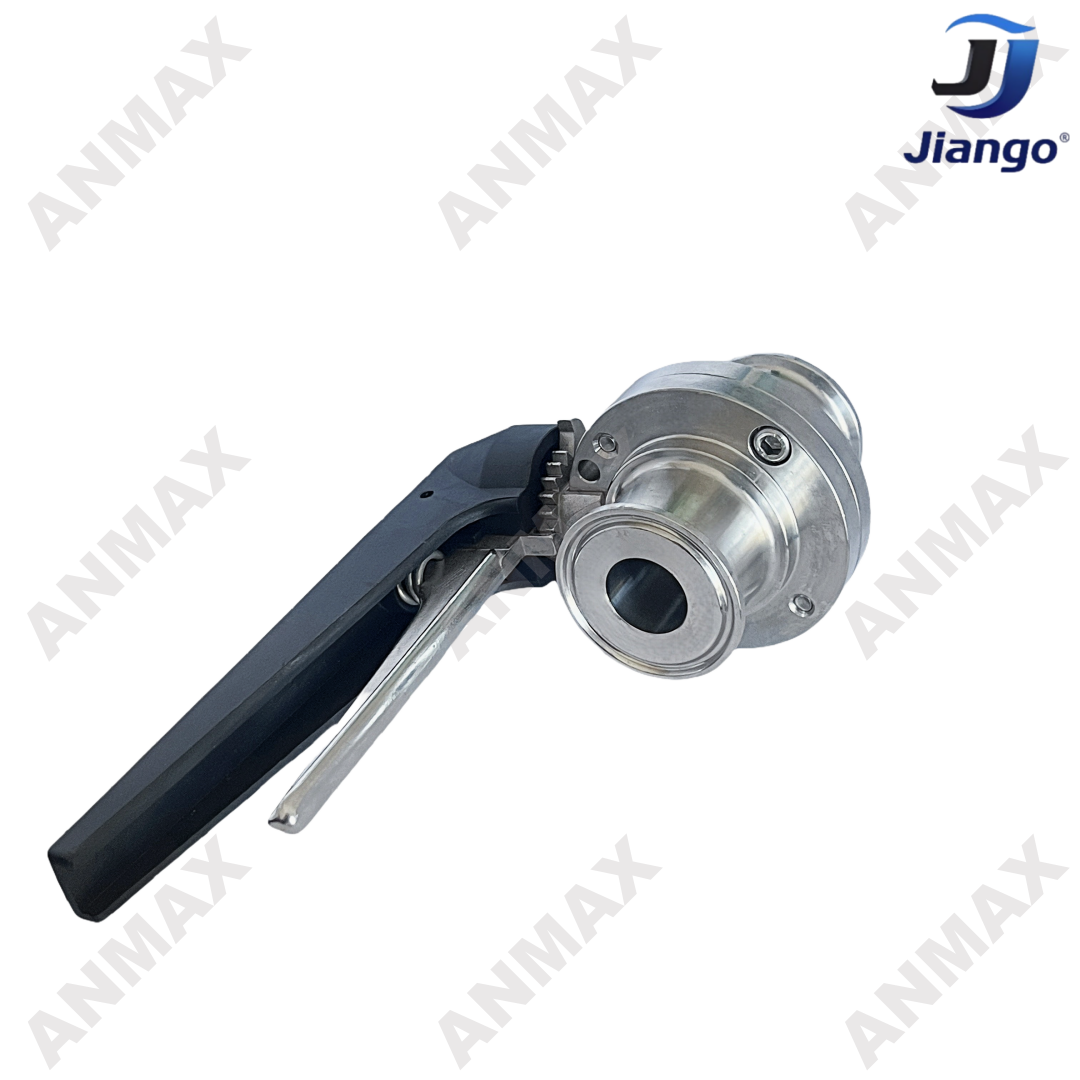

Manual Tri-Clover Butterfly Valve

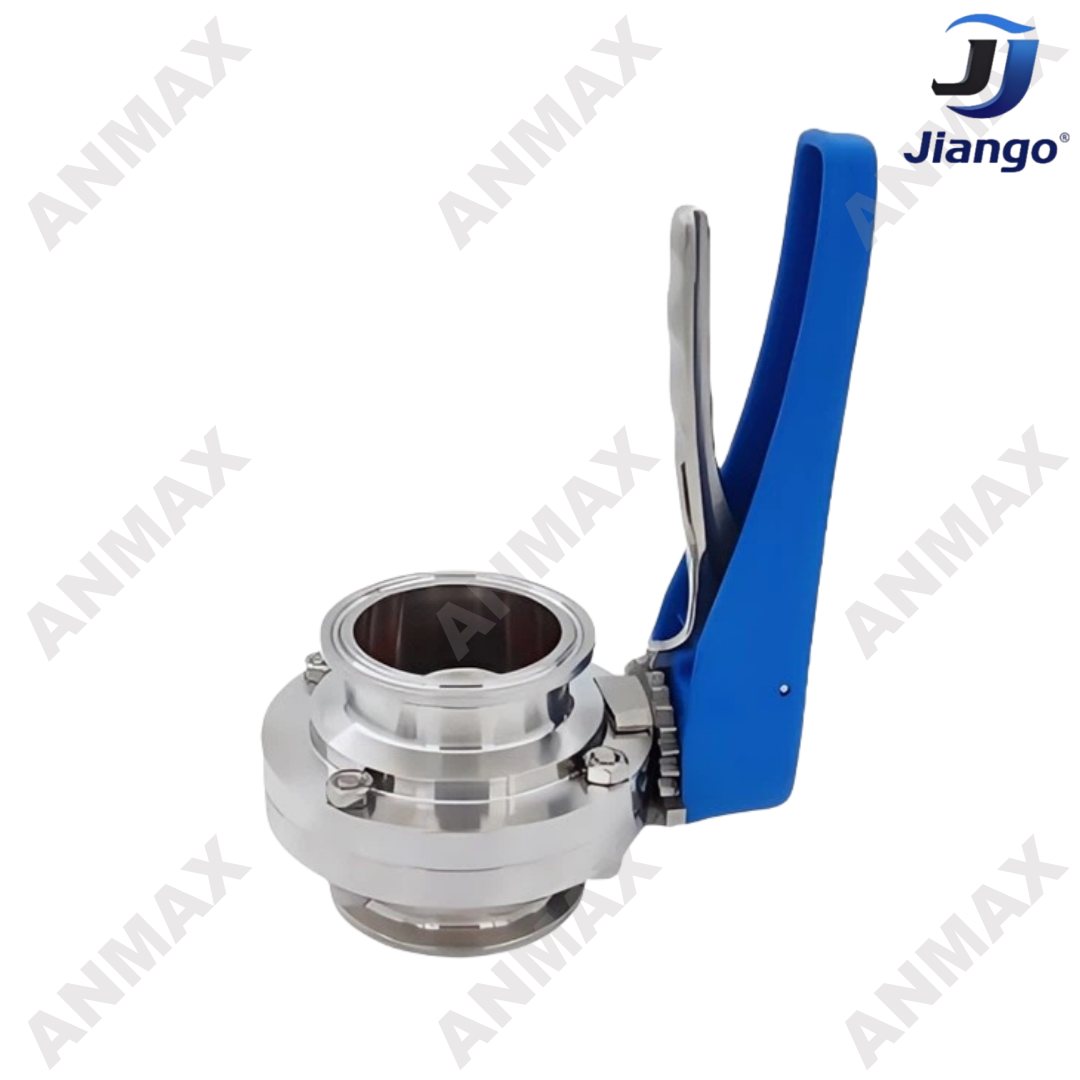

Tri Clamp Butterfly Valve with Blue Trigger Handle

Material : Stainless Steel 304 or 316L

Size : 1/2"-12",DN15-DN300

Connection : Clamp

100% tested and inspected

Sanitary butterfly valve with a stainless steel and a blue squeeze trigger handle is equipped with a toothed lock ring. This ring secures the handle in place until the lever is squeezed, allowing for the valve's opening and closing.


In the sanitation and food processing industries, hygiene and cleanliness are paramount.


Any compromise in these areas can lead to contamination and the spread of pathogens, ultimately impacting product quality and consumer health.

Sanitary valves are the most critical choice.


Tri-Clover butterfly Valves can be cleaned in place without worry of hidden areas for bacteria to build up.

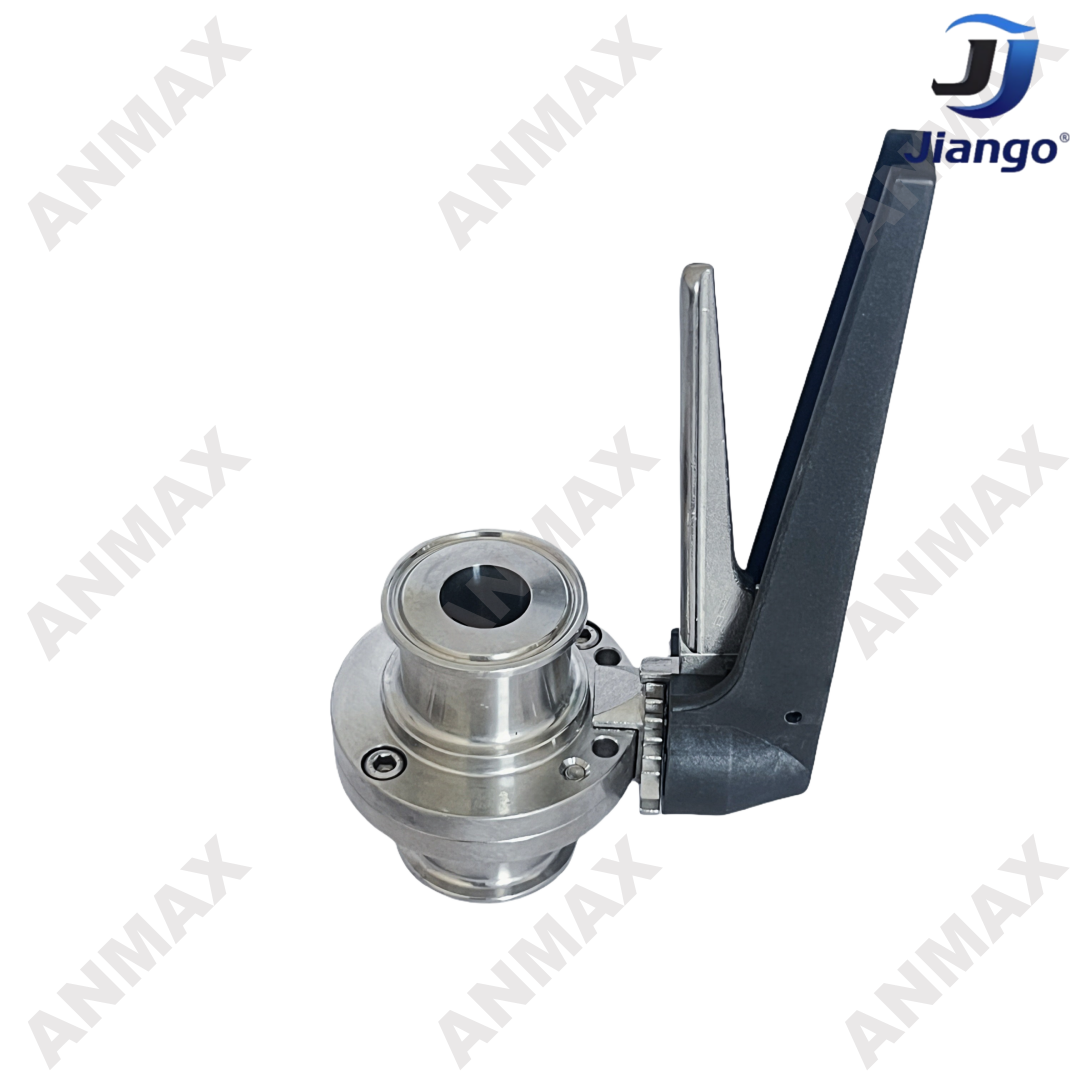

The Tri-Clover Butterfly Valve features a squeeze-trigger lock and can be secured in 13 different positions.

The handle can be squeezed to rotate the valve gate and can turn 180°, allowing it to be closed from either side.


Name
Sanitary Manual Tri-Clover Butterfly Valve
Material
Stainless steel 304, 316L
Size
1/2"-12",DN10-DN300
Standards
3A/DIN/SMS/RJT/ISO/IDF
Seal
EPDM, NBR, PTFE or according to customers
Surface
Inside Ra ≤ 0,8 µm
Max Pressure
10Bar
Working Temperature
-10℃ ~ +120℃
Way of Connection
Threaded, Welded, Clamped,Flanged
Package
Foam bag/shrink bag-carton box-ply woodencase
