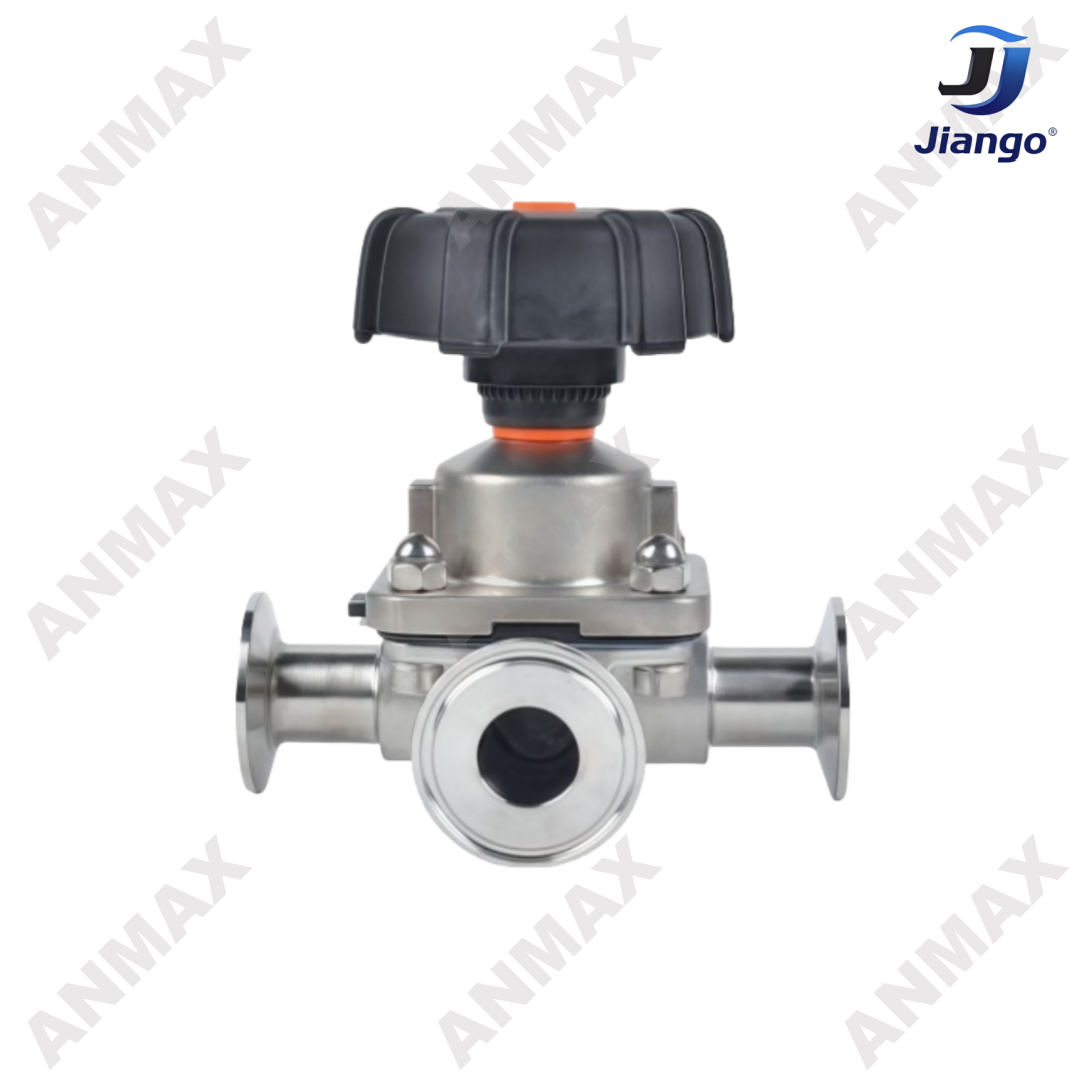

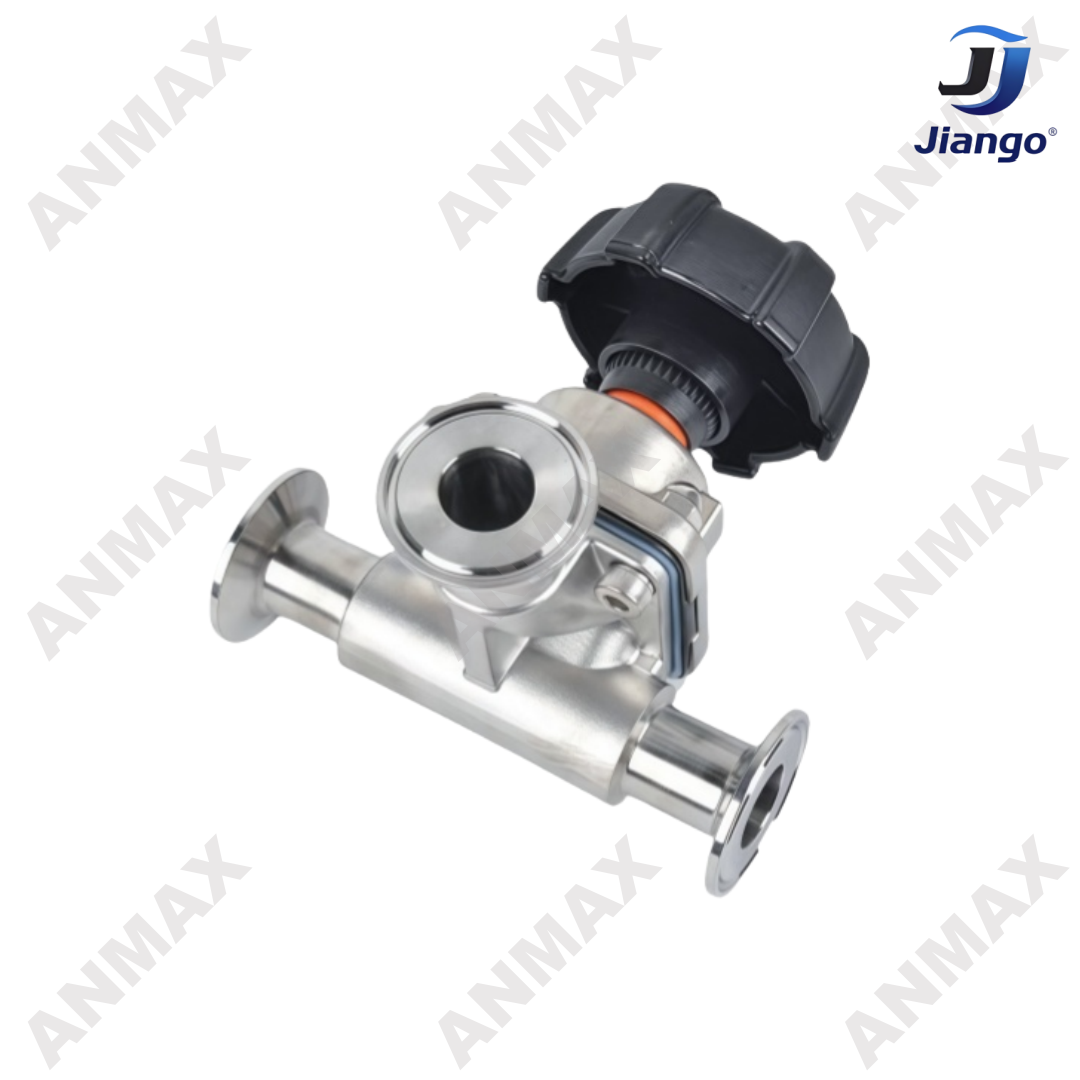

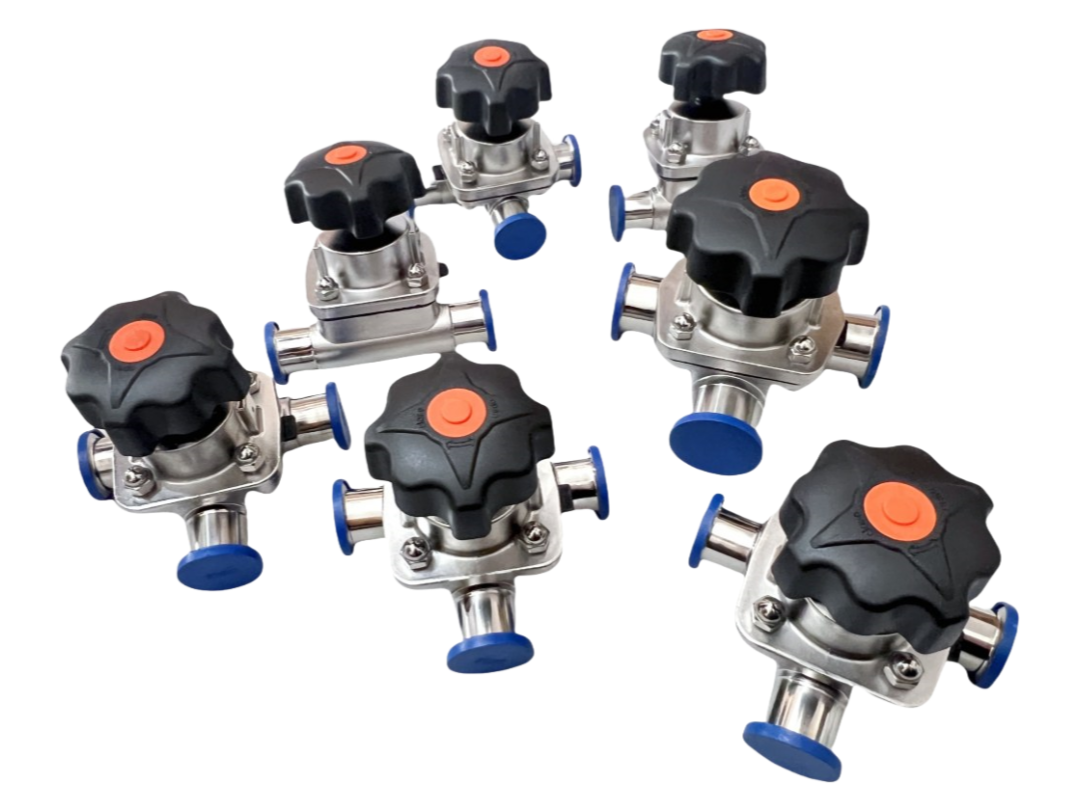

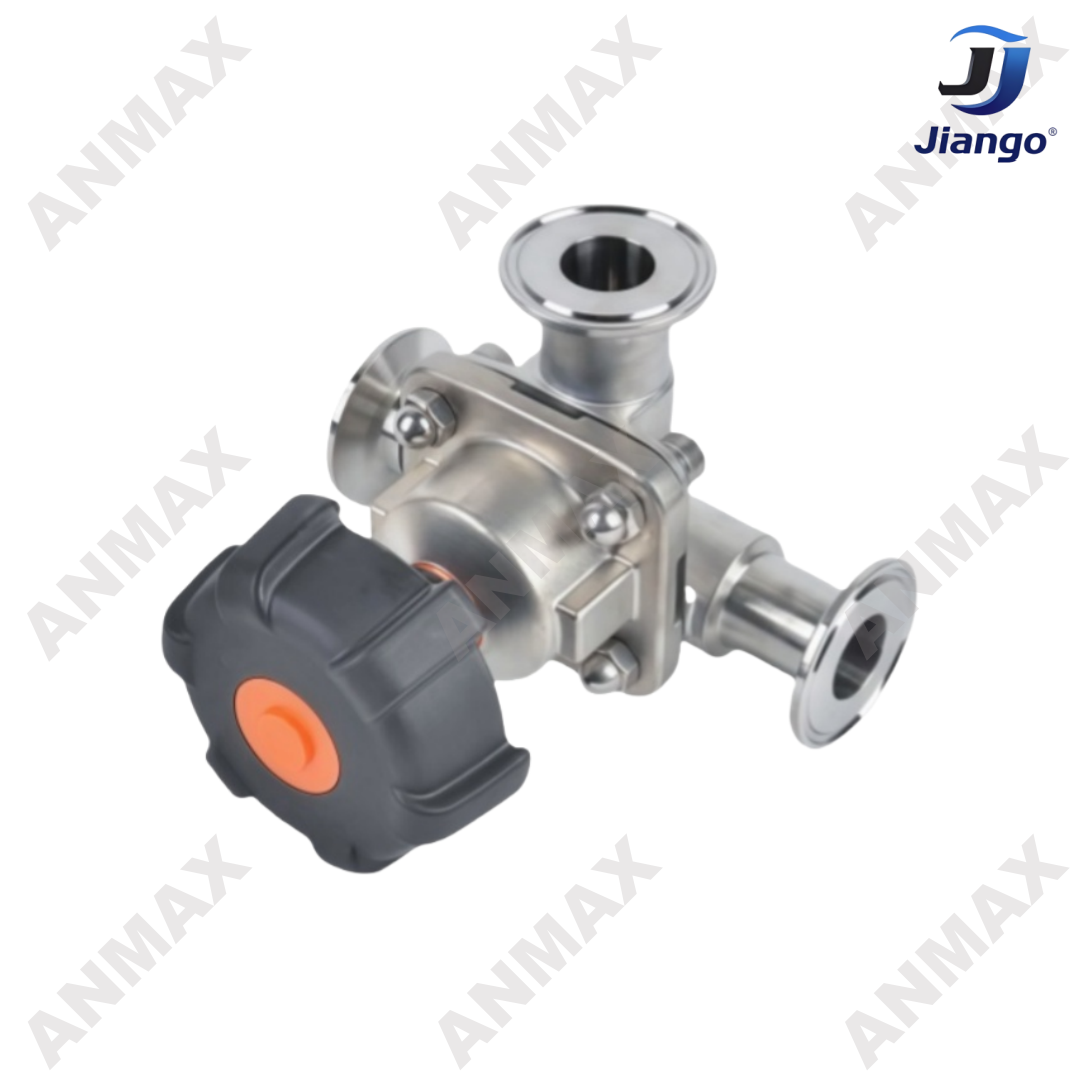

3 Way Diaphragm Valve with Tri-clamp Ends
Material : Stainless Steel 316L
Size : 1/4" - 4" ,DN6 - DN100
Connection : Clamp
100% hydraulic tested / 100% inspected
Diaphragm valves offer superior flow control and switching performance,
effectively resolving issues such as dead zones at the valve bottom and incomplete drainage from sterilization tanks during production,
thereby meeting the technical requirements of biopharmaceutical manufacturing.
|
Name |
Sanitary Tri Clamp Three-way Diaphragm Valve |
|
Material |
Stainless steel 316L |
|
Size |
1/4"-4",DN6-DN100 |
|
Seal |
EPDM+PTFE double seal, EPDM or according to customers |
|
Standards |
3A/DIN/SMS/RJT/ISO/IDF |
|
Surface |
Ra16-32µin (0.4-0.8µm) |
|
Max Pressure |
10Bar |
|
Working Temperature |
-20°C ~ +150°C |
|
Way of Connection |
Tri-Clover/Clamp End,Thread End,Butt Weld End |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
Operating Principles
Toggle the handwheel or drive the actuator to drive the valve stem upward,
so that the spherical diaphragm bends upward,so that the Clamp Three-way Diaphragm valve is in a conductive state, so as to achieve the purpose of cleaning and opening.

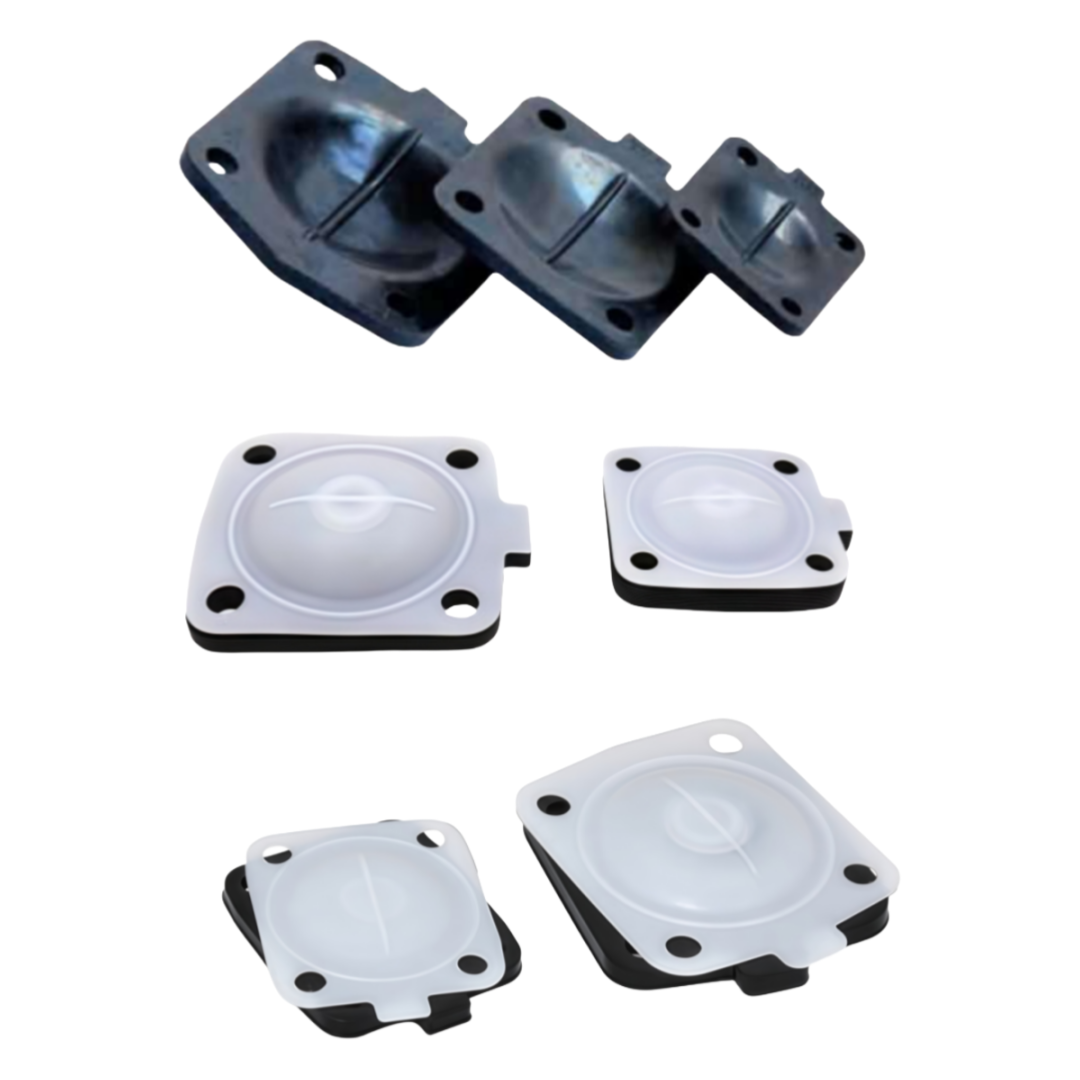

Gasket&Seal
EPDM---Generally, at temperatures below 100°C, the sterilization time is approximately 40 minutes.
EPDM+PTFE---Generally, at temperatures below 150°C, the sterilization time is approximately 40 minutes.
EPDM+PTFE Split---Generally, at temperatures below 160°C, the sterilization time is approximately 40 minutes.
