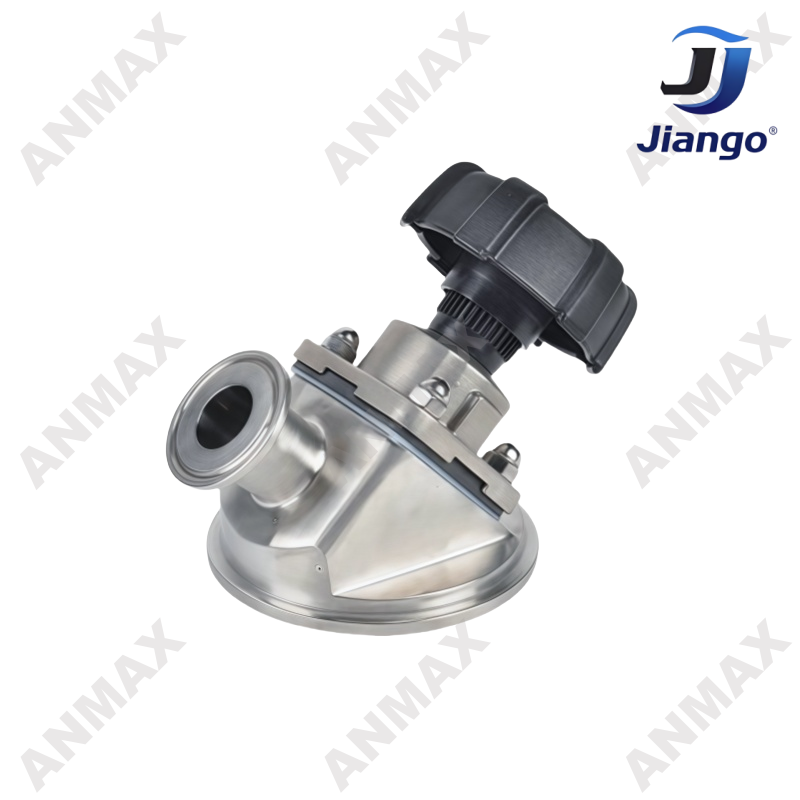

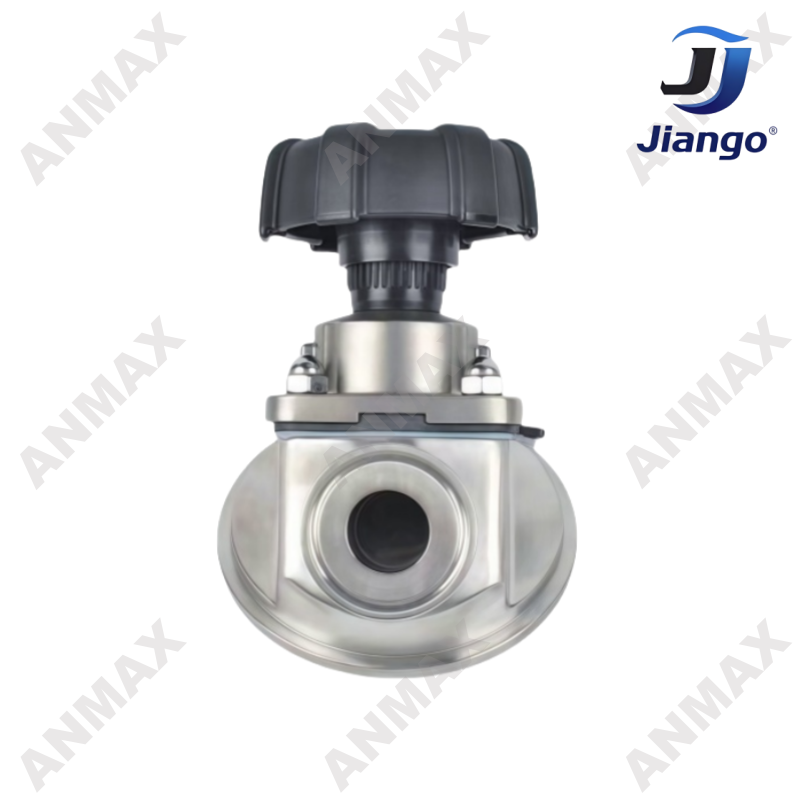

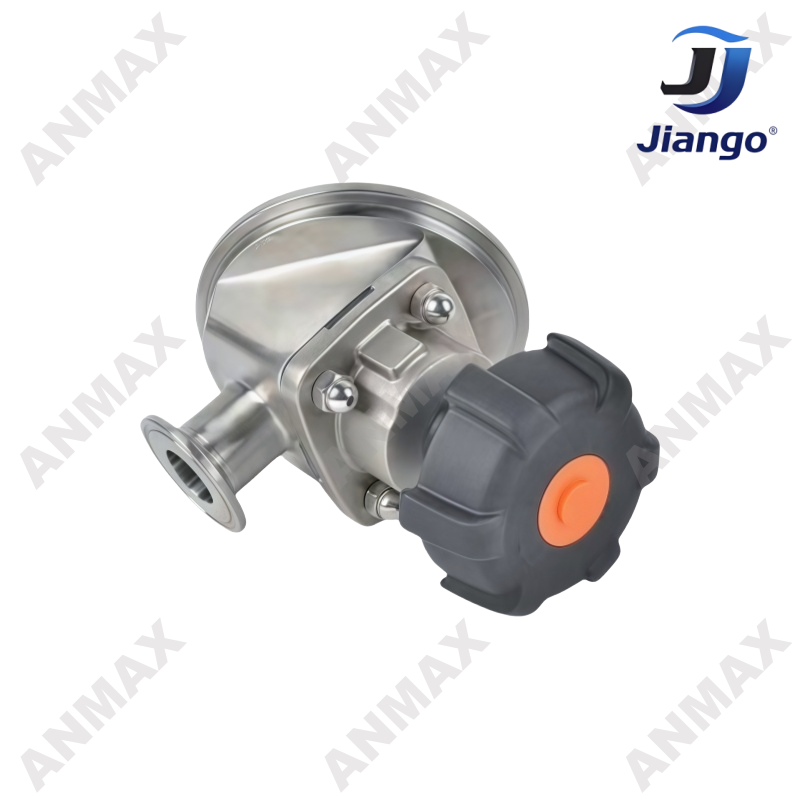

Sanitary Aseptic Tank Bottom Diaphragm Valvel
Material : Stainless Steel 316L
Size : 1" - 4" ,DN25 - DN100
Connection : Clamp
100% hydraulic tested / 100% inspected
Working Principle：The tank bottom valve is welded to the container base, achieving optimal results for emptying, cleaning, and sterilization.
The sealing weir of the tank bottom valve is positioned as close as possible to the tank bottom wall, ensuring zero dead zones.
The tank bottom valve offers broad versatility, supporting manual, pneumatic, and electric actuation methods, with easy component replacement.
Multiple configurations—including two-way, three-way, U-shaped, T-shaped, multi-port, and tank-bottom designs—accommodate diverse system layouts.
Each valve undergoes 100% hydraulic testing and visual inspection to ensure reliable leak-free performance.
|
Name |
Stainless steel Aseptic Tank Bottom Diaphragm Valve |
|
Material |
Stainless steel 316L |
|
Size |
1" - 4" ,DN25 - DN100 |
|
Seal |
EPDM+PTFE double seal, EPDM or according to customers |
|
Standards |
3A/DIN/SMS/RJT/ISO/IDF |
|
Surface |
Ra16-32µin (0.4-0.8µm) |
|
Max Pressure |
10Bar |
|
Working Temperature |
-20°C ~ +150°C |
|
Way of Connection |
Tri-Clover/Clamp End,Thread End,Butt Weld End |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
Advantage of the diaphragm valve
Compact structure, can ensure installation in a small space
Automatic emptying without dead angle. Zero dead space design supports full cleanability and sterility
The diaphragm can be replaced and the maintenance cost is low
