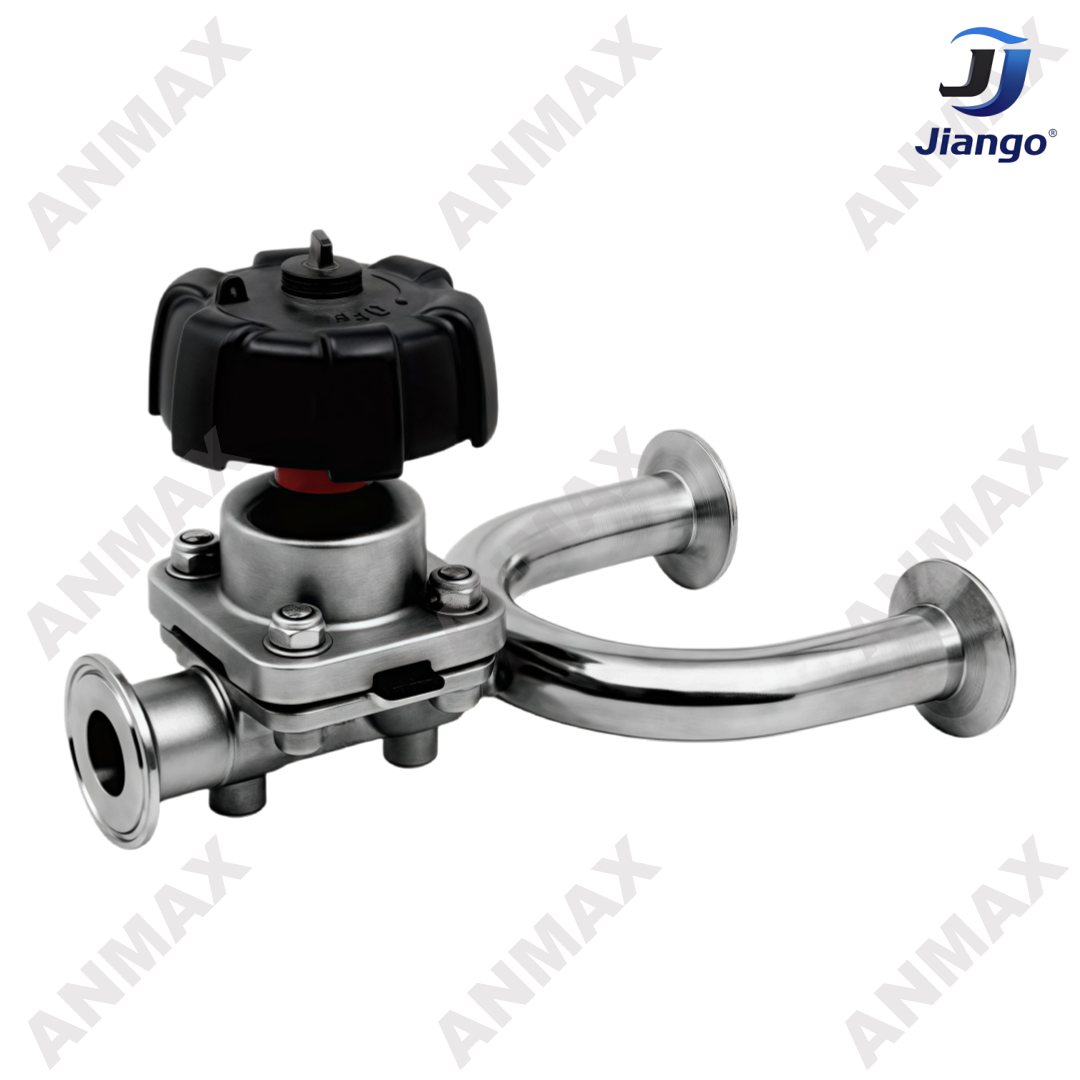

Sanitary U-Type 3 Way Diaphragm Valve
Material : Stainless Steel 316L
Size : 1/2" - 4" ,DN15 - DN100
Connection : Clamp
100% hydraulic tested / 100% inspected
Sanitary stainless steel diaphragm valves are the ideal choice for pharmaceutical, bioprocessing, and food applications.
Featuring EPDM diaphragms, precision-cast stainless steel bodies, and polished straight-through channels with no dead spots, these valves resist acids and alkalis, are leak-free, bacteria-free, easy to sterilize, and simple to maintain.
|
Name |
Sanitary U-Type Three Way Diaphragm Valve |
|
Material |
Stainless steel 316L |
|
Size |
1/4"-4",DN6-DN100 |
|
Seal |
EPDM+PTFE double seal, EPDM or according to customers |
|
Standards |
3A/DIN/SMS/RJT/ISO/IDF |
|
Surface |
Ra16-32µin (0.4-0.8µm) |
|
Max Pressure |
10Bar |
|
Working Temperature |
-20°C ~ +150°C |
|
Way of Connection |
Tri-Clover/Clamp End,Thread End,Butt Weld End |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
Features of U-Type Three-Way Diaphragm Valve
The two common types of diaphragm valve structures are the straight-line and weir designs.
Except for the valve body and diaphragm, the weir-type diaphragm valve shares a fundamentally identical structure with the straight-through diaphragm valve.
The valve body features an automatic drainage function, making it highly suitable for food facility operations.
Since the diaphragm can be manufactured from more robust materials, this valve body can also operate under high-pressure conditions.
