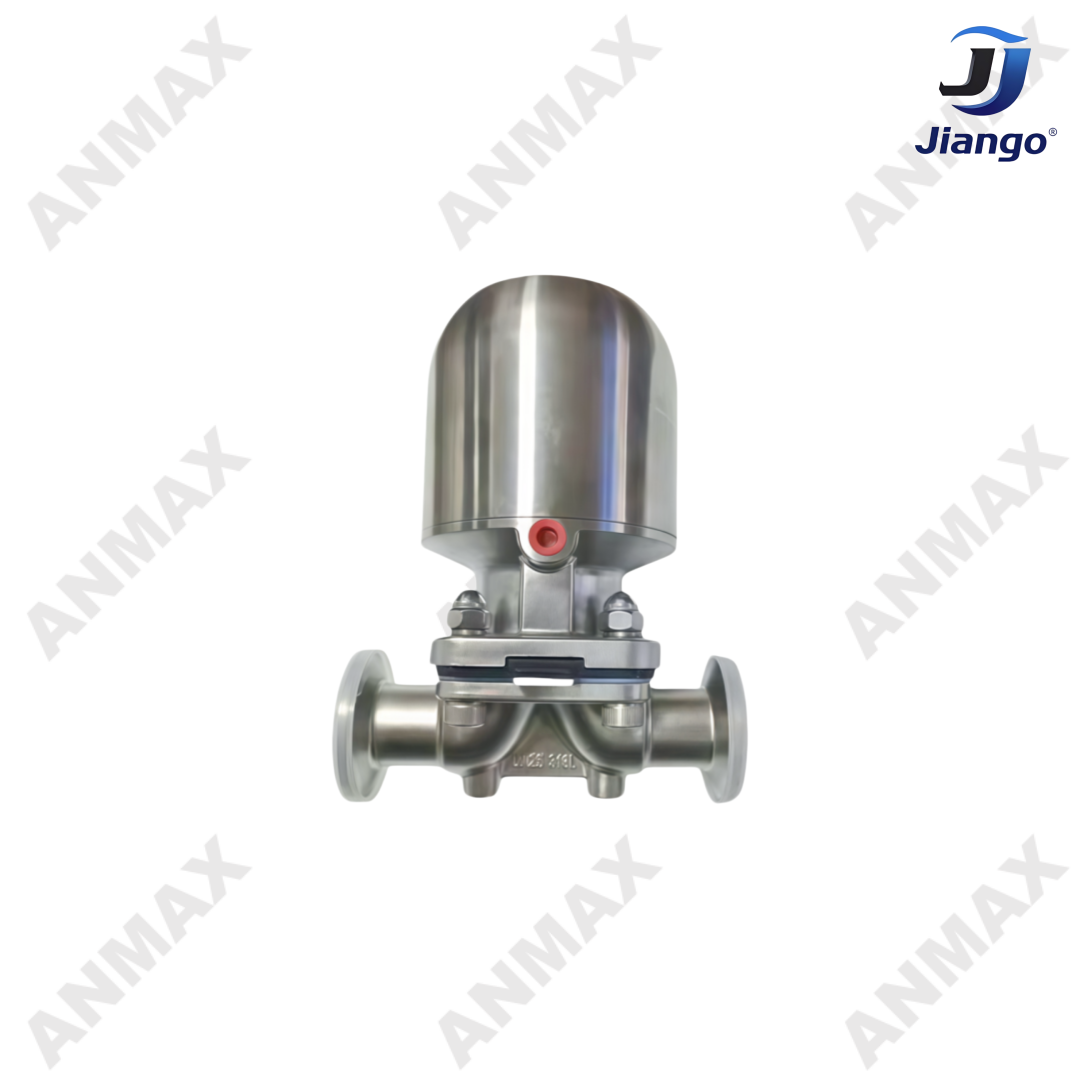

Hygienic Diaphragm Valve with Stainless Steel Actuator
Material : Stainless Steel 316L
Size : DN25 -DN100
Connection : Weld
100% tested and inspected
The stainless steel pneumatic diaphragm valve is designed for hygienic fluid control in industries such as food, pharmaceutical, and biotechnology.
Equipped with a full stainless steel actuator, it offers superior durability, corrosion resistance, and reliable performance in harsh environments.
Working Principle
Compressed air drives the actuator to move the stem downward, pressing the diaphragm onto the valve seat to stop flow.
When air is released, the diaphragm lifts, allowing fluid to pass through.
This ensures: Tight sealing No contamination Smooth flow path
|
Name |
Hygienic Diaphragm Valve with Stainless Steel Actuator |
|
Material |
Stainless steel 316L |
|
Size |
1"-4",DN25-DN100 |
|
Seal |
EPDM+PTFE double seal, EPDM or according to customers |
|
Standards |
3A/DIN/SMS/RJT/ISO/IDF |
|
Surface |
Ra16-32µin (0.4-0.8µm) |
|
Max Pressure |
10Bar |
|
Working Temperature |
-20°C ~ +150°C |
|
Way of Connection |
Tri-Clover/Clamp End,Thread End,Butt Weld End |
|
Package |
Foam bag/shrink bag-carton box-ply woodencase |
Key Features
Full stainless steel actuator for long service life
Hygienic diaphragm design, no dead zones
Suitable for CIP/SIP systems
Available in SS304 / SS316L
Multiple connections: Tri Clamp / Weld / Thread
Applications
Food processing, dairy, pharmaceutical, biotechnology, and clean water systems.
